Built for performance in any weather, CattleMaster waterers pair the proven strength of stainless steel with the resilience of Ritchie’s poly construction. Thermostatically controlled heat and a quick-refill valve keep fresh water flowing — even in the coldest conditions.

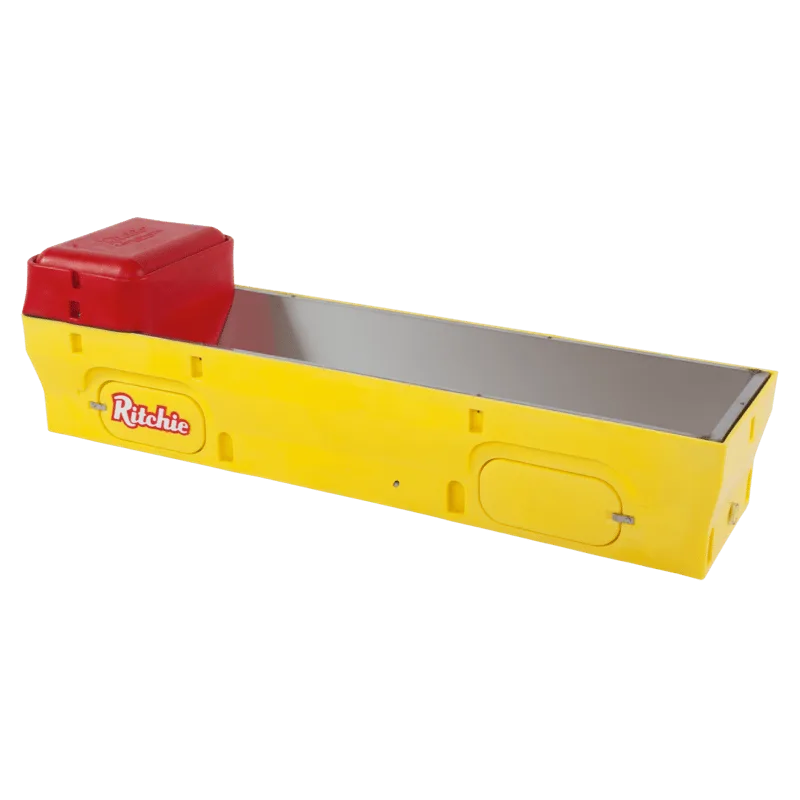

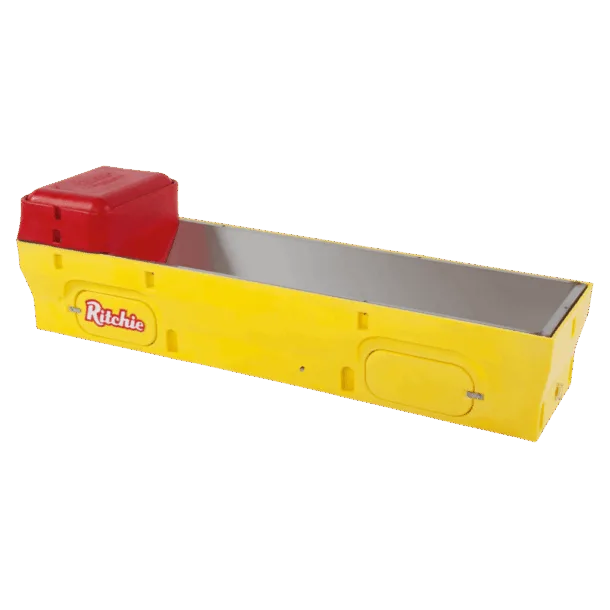

The casing of the CattleMaster 840 is made from Ritchie’s heavy-duty, impact resistant polyethylene. The roto-molded construction is heavily insulated for energy efficiency with UV inhibitors to extend life. With a 16-inch (40-cm) drinking height, this 7-foot (2.13-m) waterer is ideal for large pastures or pens and waters up to 300 beef cattle or 150 dairy cattle.
-
Cable heater provides extra valve and supply line protection.
-
Easy-access dome cover makes maintenance simple.
-
Trough and hardware are manufactured from 304 stainless steel for durability and long product life.
- Part No.
- 18235
- Length
- 87in/221cm
- Width
- 23.5in/60cm
- Height
- 24.5in/62cm
- Weight
- 123lbs/56kg
- Drinking Height
- 15.5 inches
- Heat
- 1,048W (8.7A@120V)
- Herd Capacity
- 150 Dairy, 300 Beef
1-foot thermal tube top
2-foot thermal tube extension
2-inch plug package
3/4-inch series float
3/4-inch series float hardware package
3/4-inch valve bracket
3/4-inch valve rubber package
4-foot thermal tube top
Anchor bolts package
Cable heater
Green 3/4-inch valve series
Replace your existing valves in your larger green Ritchie automatic waterers.
Heater 120V 250W
Red 3/4-inch valve series
Stainless-steel Fenwal thermostat
White 3/4-inch valve series

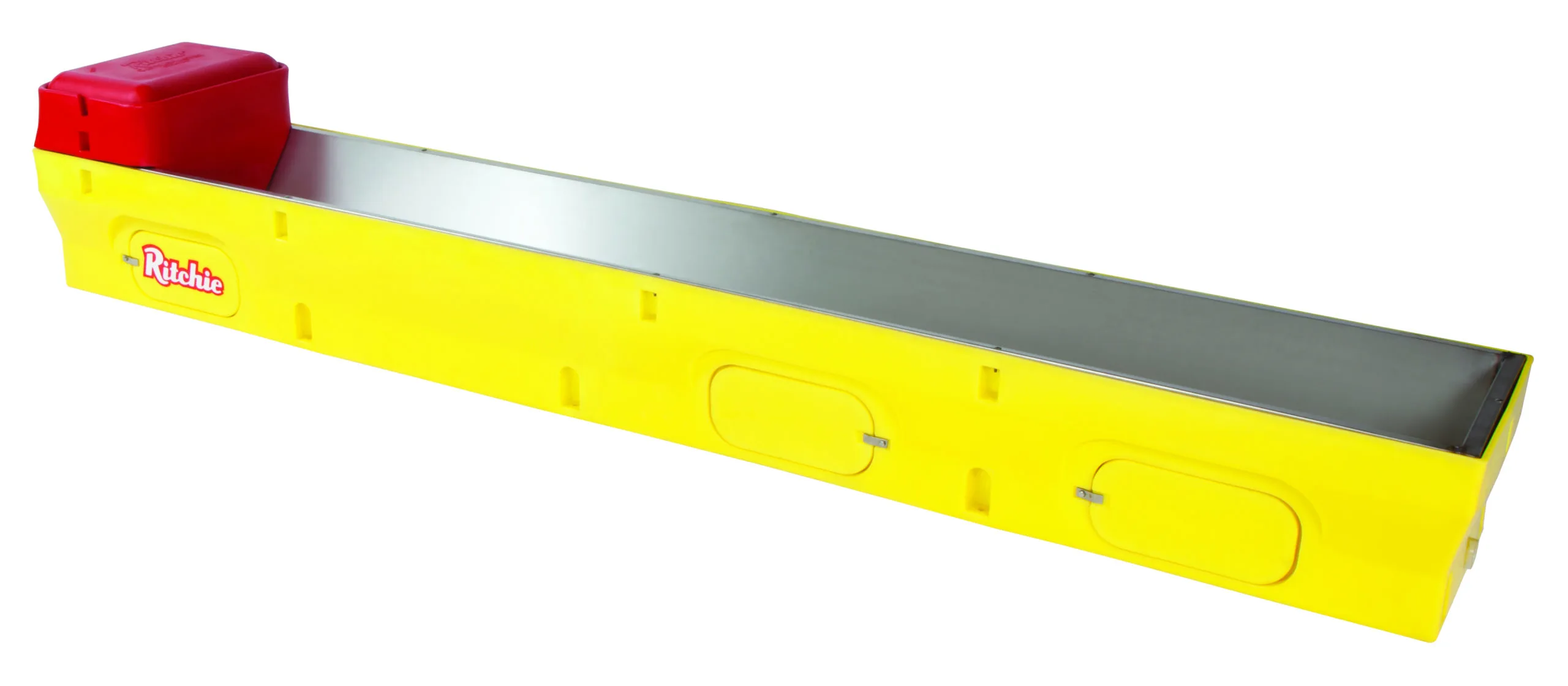

CattleMaster 1440
Ritchie Waterers are so well insulated that we have been recognized by electric companies and government agencies for energy efficiency. Below is the estimated cost of electricity per unit, per year.
All costs are based on a rate of 18.05 cents per kilowatt-hour. Your cost may vary. Estimates based on U.S. dollars.
Estimated annual energy cost for CattleMaster 840
| Oklahoma City, Oklahoma | St. Louis, Missouri | Conrad, Iowa | Sioux Falls, South Dakota | Fargo, North Dakota | Winnipeg, Manitoba |
|---|---|---|---|---|---|
| $148.96 | $190.68 | $307.87 | $333.70 | $355.55 | $385.32 |
