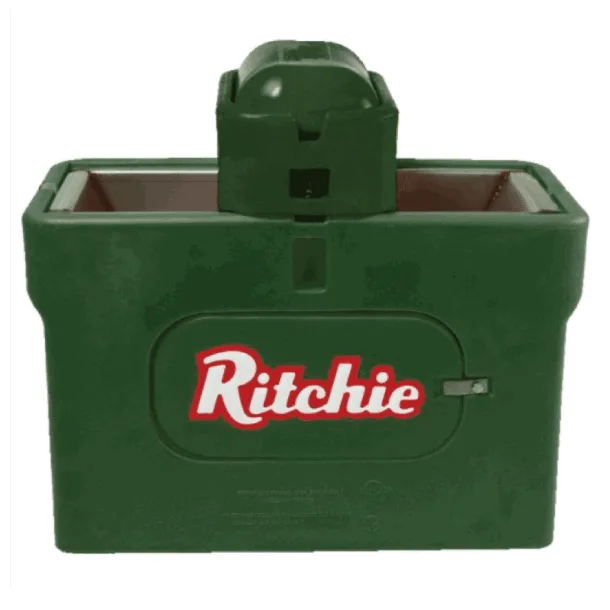

OmniFount blends technology from our traditional stainless steel units and our insulated poly units to create the premier heated livestock waterer. The OmniFount 2 has smooth, rounded edges for animal safety and a fully insulated casing for energy efficiency. The stainless-steel trough features thermostatically controlled heat elements that are attached to the underside for frost-free service even under the most severe winter conditions. The OmniFount 2 trough has a quick-refill valve to provide fresh water for up to 40 head of cattle or horses.
-
Insulated with highly energy efficient polyurethane foam for an R-factor of 7 per inch.
-
Designed with heating elements directly under stainless steel trough for exceptional performance.
-
Unit comes complete and ready to install.
- Part No.
- 18526
- Length
- 28.3in/72cm
- Width
- 14.5in/37cm
- Height
- 25in/64cm
- Weight
- 45lbs/20kg
- Drinking Height
- 18 inches
- Heat
- 298W(2.5A@120V)
- Herd Capacity
- 20 Dairy, 40 Horses, 40 Beef
1-foot thermal tube top
1/2-inch valve rubber package

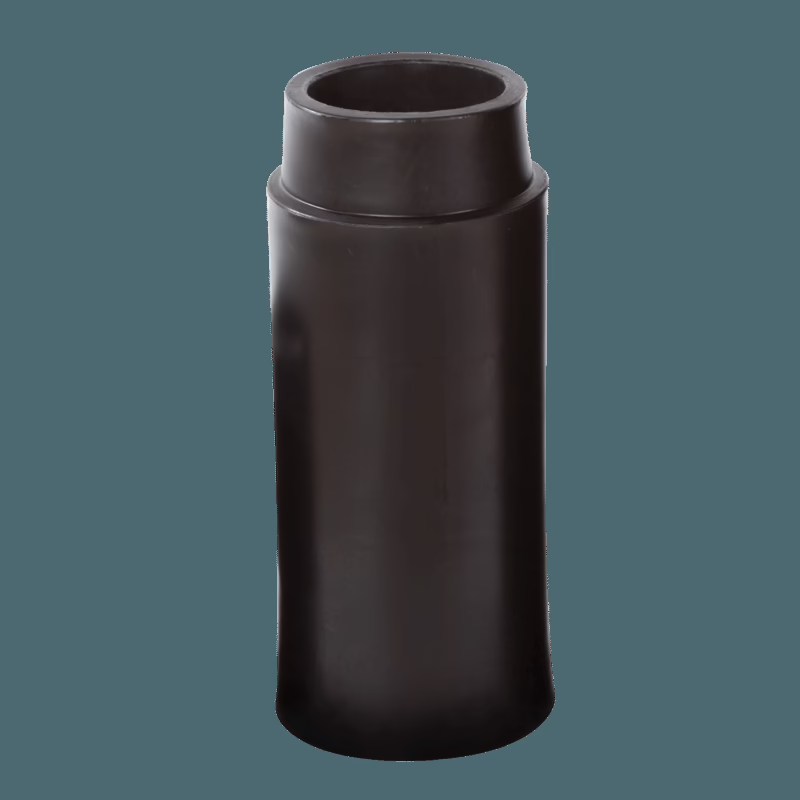

2-foot thermal tube extension
4-foot thermal tube top
Anchor bolts package
Cable heater
Disc thermostat
Drain pipe
Drain washer package
Float with short arm
Green 1/2-inch valve package
Heater 125W
OmniFount drain plug
Red 1/2-inch valve package
Standpipe package (small units)
Valve bracket
Ritchie Waterers are so well insulated that we have been recognized by electric companies and government agencies for energy efficiency. Below is the estimated cost of electricity per unit, per year.
All costs are based on a rate of 18.05 cents per kilowatt-hour. Your cost may vary. Estimates based on U.S. dollars.
Estimated annual energy cost for Green OmniFount 2
| Oklahoma City, Oklahoma | St. Louis, Missouri | Conrad, Iowa | Sioux Falls, South Dakota | Fargo, North Dakota | Winnipeg, Manitoba |
|---|---|---|---|---|---|
| $38.61 | $49.43 | $79.81 | $86.51 | $92.18 | $99.90 |
