Sku: 18860
Contact us for availability and pricing

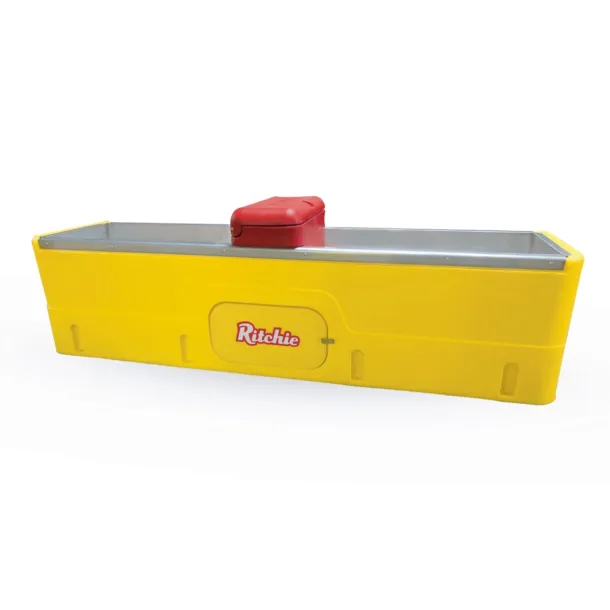

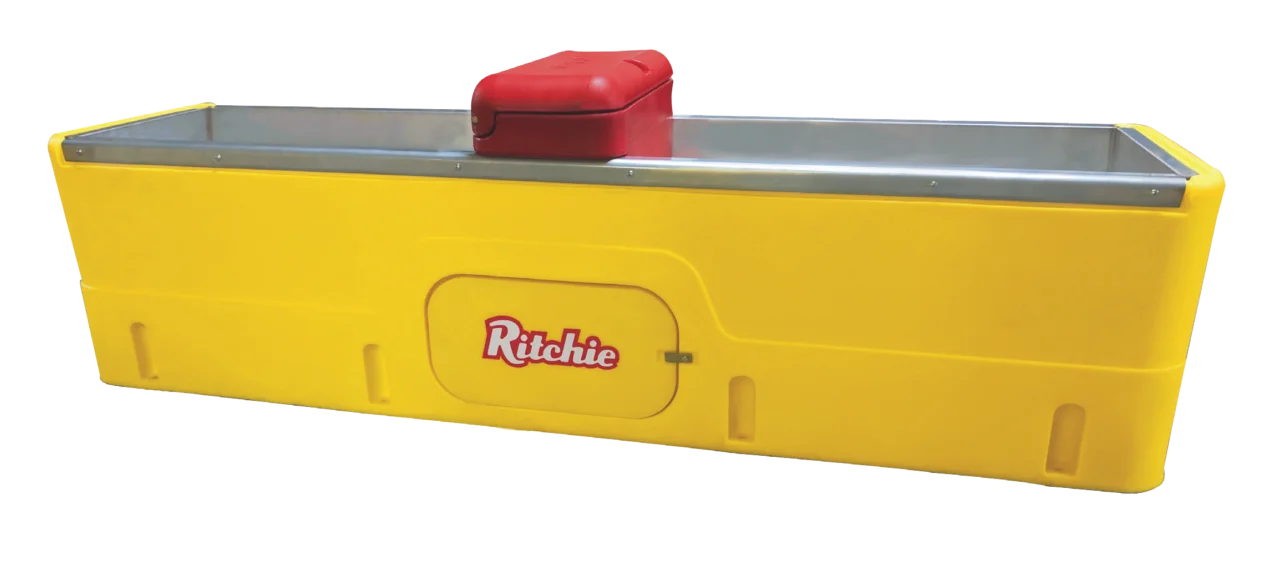

The OmniMaster 8 is durably designed with a fully insulated body and a unique wraparound stainless-steel trough. Thermostatically controlled heat coverage and a quick-refill valve provide fresh, clean water even in the harshest winters. A built-in high-capacity drain maintains a clean drinking environment.
Heated
1,048W (8.7A@120V)
52 gallons
180 Dairy
360 Beef
-
Fully insulated casing boosts energy efficiency and durability.
-
Producer-favorite flip-open top cover offers easy maintenance.
-
Unique wraparound edge and impact-resistant polyethylene construction protect from wear and tear.
- Part No.
- 18860
- Length
- 96in/244cm
- Width
- 24in/61cm
- Height
- 30in/76cm
- Weight
- 169lbs/77kg
- Drinking Height
- 24 inches
- Heat
- 1,048W (8.7A@120V)
- Herd Capacity
- 180 Dairy, 360 Beef
1-foot thermal tube top
Use the 1-foot thermal tube for shallow frost lines or combine with the 2-foot extension to accommodate any waterline depth.
2-foot thermal tube extension
Combine the 2-foot extension with other lengths of thermal tubes to accommodate any waterline depth.
3-inch plug package
Plug is designed to fit snug in WaterMatic waterers.
3/4-inch HP valve assembly
More buoyant than prior models, the 3/4-inch HP valve features a higher flow rate and a thumb screw to easily adjust the water height.
3/4-inch series float
Regulate and adjust the water level in automatic waterers designed for herds with over 200 head.
3/4-inch series float hardware package
This replacement hardware package is for the 3/4-inch float series.
3/4-inch valve bracket
Replacement valve bracket for larger units utilizing a standpipe.
3/4-inch valve rubber package
Extend the life of your 3/4-inch valves by replacing the valve rubbers.
4-foot thermal tube top
Protect your vertical water supply line from freezing with thermal tubes.
Cable heater
This replacement cable heater protects your valve and water line. For use in waterers with metal troughs.
Green 3/4-inch valve series
Replace your existing valves in your larger green Ritchie automatic waterers.
Heater 120V 250W
Keep your stainless-steel trough from freezing even during the coldest winters.
Red 3/4-inch valve series
Replace your existing valves in your larger Ritchie automatic waterers.
Stainless-steel Fenwal thermostat
This thermostat is used in all larger style units with stainless-steel troughs.
White 3/4-inch valve series
Replace your existing valves in your larger Ritchie automatic waterers.
Ritchie Waterers are so well insulated that we have been recognized by electric companies and government agencies for energy efficiency. Below is the estimated cost of electricity per unit, per year.
All costs are based on a rate of 18.05 cents per kilowatt-hour. Your cost may vary. Estimates based on U.S. dollars.
Estimated annual energy cost for OmniMaster 8
| Oklahoma City, Oklahoma | St. Louis, Missouri | Conrad, Iowa | Sioux Falls, South Dakota | Fargo, North Dakota | Winnipeg, Manitoba |
|---|---|---|---|---|---|
| $148.54 | $190.15 | $307.01 | $332.75 | $354.56 | $384.26 |
