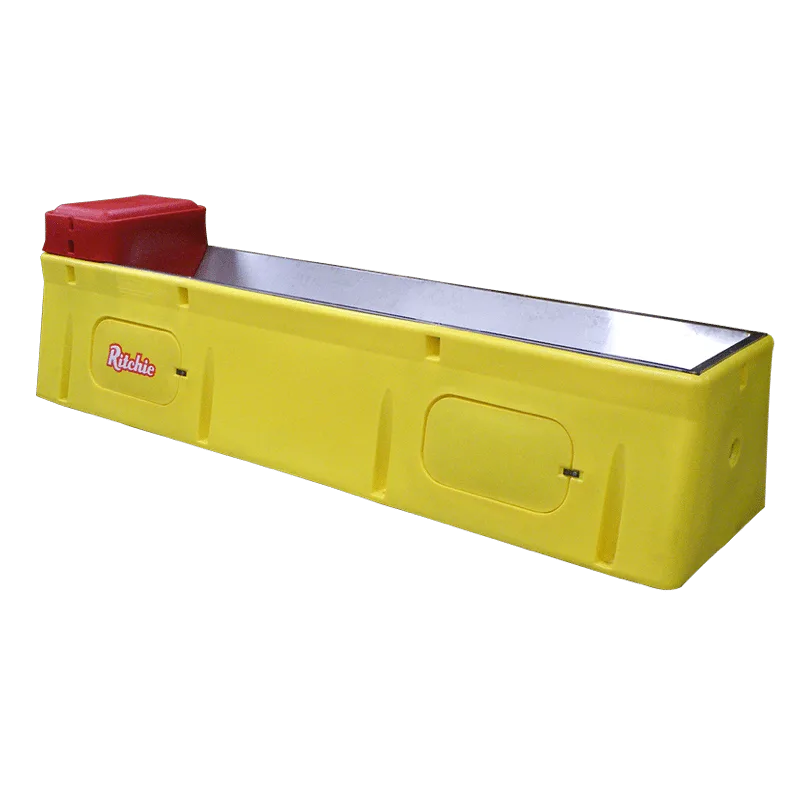

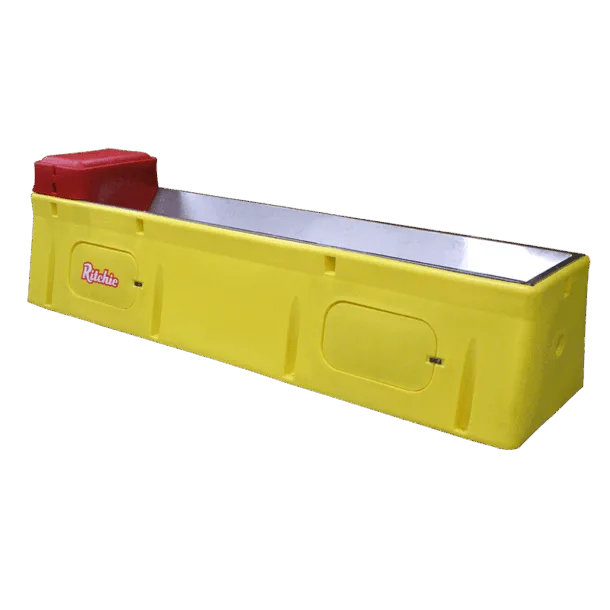

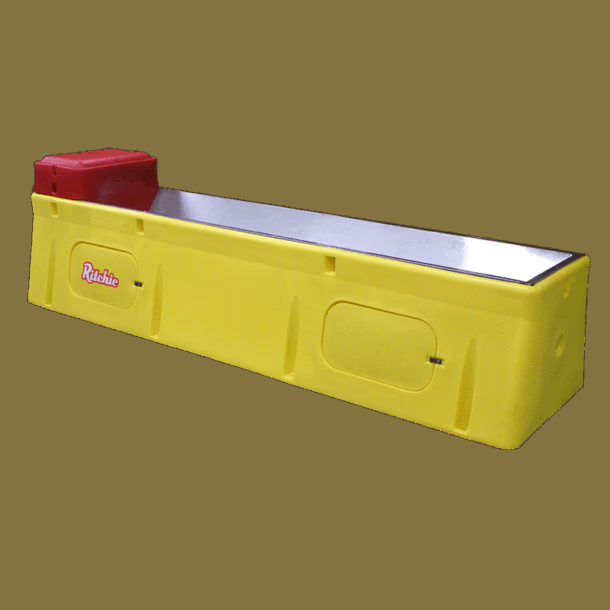

CattleMaster 10T #18700

CattleMaster fountains provide the best of both worlds: blending technology from traditional stainless steel units and the newest poly units, to provide a premier livestock waterer. Featuring thermostatically controlled heat for ice-free operation and Ritchie’s fast refill valve, Cattlemaster fountains will satisfy your herd’s hydration needs in any climate. The casing of the CattleMaster 10T offers a taller drink height and is made from Ritchie’s heavy-duty, impact resistant polyethylene construction. The roto-molded construction is heavily insulated for energy efficiency and employs UV inhibitors for extended life.

Herd Capacity
Beef
400
Dairy
200
Not sold online, locate a dealer or call 1-800-747-0222.

Features

  • Meets Grade A dairy recommendations
  • 10 Year Warranty
  • UL/CUL Approved
  • Unique water seal keeps cold air away from valve
  • Electric heat standard; attached directly under the trough for maximum performance

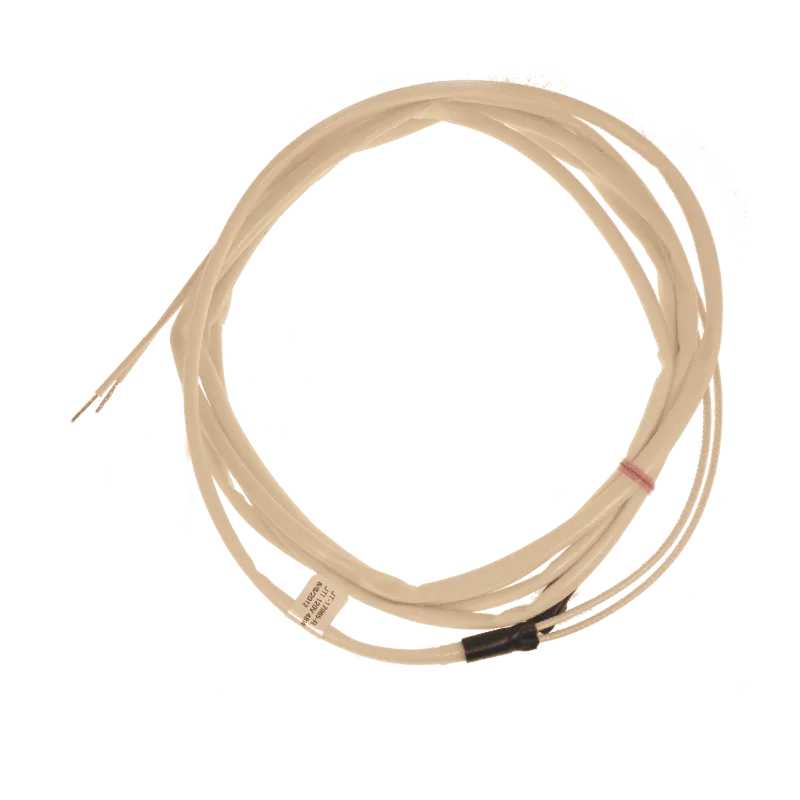

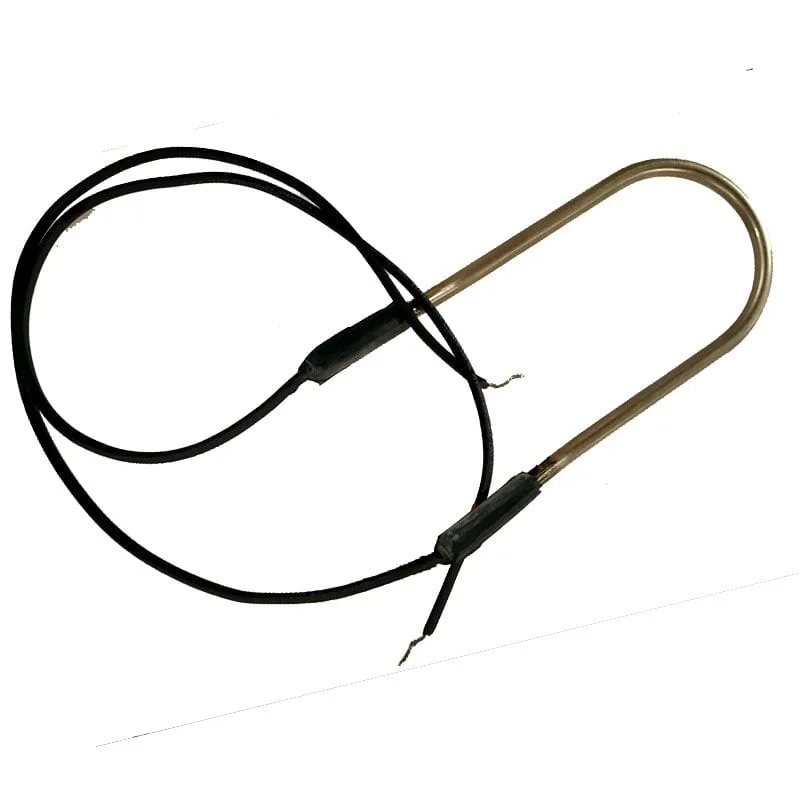

  • Cable heater provides extra valve and supply line protection
  • Trough and hardware are 304 stainless steel for durability and long life
  • Fully adjustable thermostat

Specifications & Support

*Package dimensions are listed for individual parts for shipping purposes
Part No.
18700
Length
120in/304.8cm
Width
32in/81.28cm
Overall Height
33.25in/84.46cm
Shipping Weight
180lb/81.65kg
Drinking Height
25in/63.5cm
Heat
1048W
Capacity
50gal/189.27L
Herd Capacity
400 beef, 200 dairy

CattleMaster 10T #18700 Videos

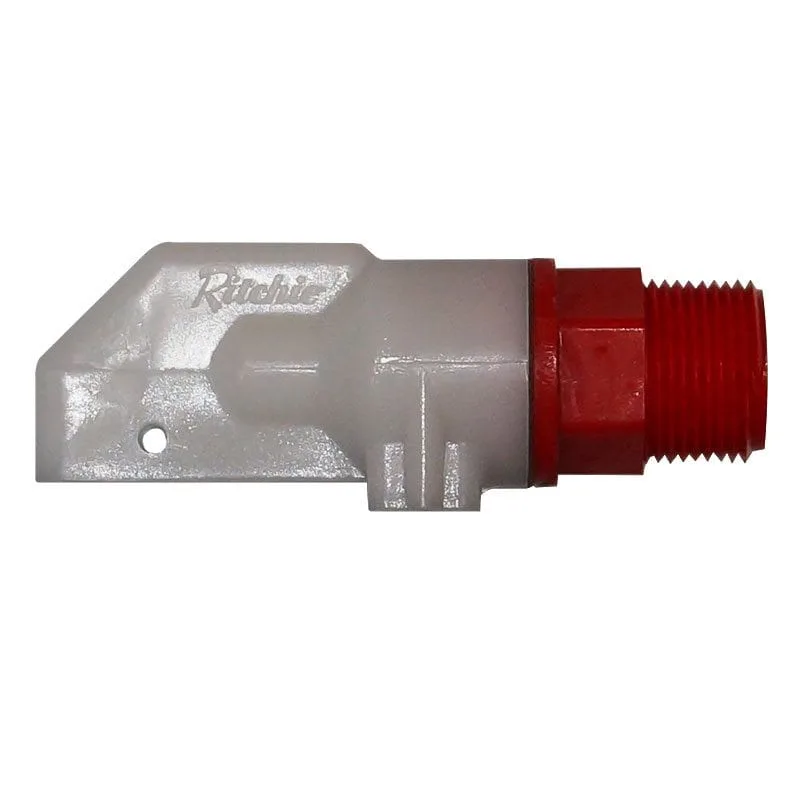

How to change the 3/4" valve rubber on larger Ritchie waterers

The valve rubber in the Omni 3, Omni 5 and CattleMaster series may need to be changed due to normal wear and tear or due to a buildup of deposits carried throug…

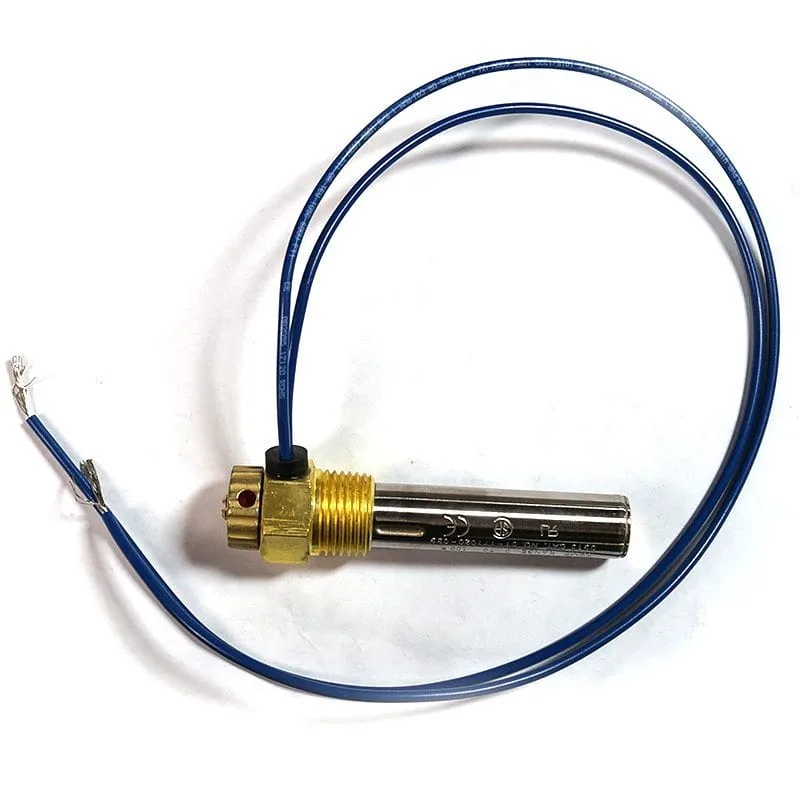

Ritchie Industries, adjusting the fenwal thermostat on larger automatic waterers

Ritchie automatic waterers come in a variety of sizes. The larger, heat standard units are available with an adjustable fenwal thermostat. This video highligh…
