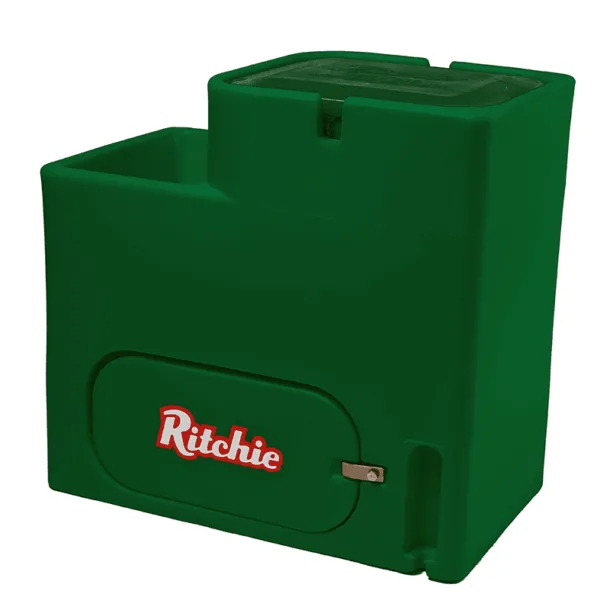

The WaterMatic family combines the best features of Ritchie waterers, with the easiest operation and simple maintenance. The WaterMatic 100 is a small compact design that is fully insulated to keep the water cool in the summer and provides added protection during the winter. The drop-in cover is easy to lift for maintenance and cleaning. Trough slopes toward the drain hole for easy cleaning and debris removal. Drain plug can be moved to the valve chamber opening for short-term trough shut-off during cleaning, when the pen is empty or during excessively cold nights. Its low capacity and quick-refill valve allow for low water waste and fresh water on demand. Optional heat package is required in freezing conditions.
-
Designed to work for individual stalls or pens.
-
Generous side-access panel simplifies maintenance.
-
One-piece rugged fountain body offers durability for long product life.
- Part No.
- 18574
- Length
- 24.5in/62cm
- Width
- 14in/36cm
- Height
- 23.5in/60cm
- Weight
- 38lbs/17kg
- Drinking Height
- 18 inches
- Herd Capacity
- 20 Horses, 20 Beef, 50 Sheep/Goats
1-foot thermal tube top
1/2-inch valve rubber package
2-foot thermal tube extension
3-inch plug package
4-foot thermal tube top
Anchor bolts package
Float with long arm
Green 1/2-inch valve package
Immersion heater
Red 1/2-inch valve package
Self-regulating heat cable
Valve bracket
Ritchie Waterers are so well insulated that we have been recognized by electric companies and government agencies for energy efficiency. Below is the estimated cost of electricity per unit, per year.
All costs are based on a rate of 18.05 cents per kilowatt-hour. Your cost may vary. Estimates based on U.S. dollars.
Estimated annual energy cost for Green WaterMatic 100
| Oklahoma City, Oklahoma | St. Louis, Missouri | Conrad, Iowa | Sioux Falls, South Dakota | Fargo, North Dakota | Winnipeg, Manitoba |
|---|---|---|---|---|---|
| $25.88 | $33.37 | $53.86 | $58.39 | $62.19 | $67.41 |
