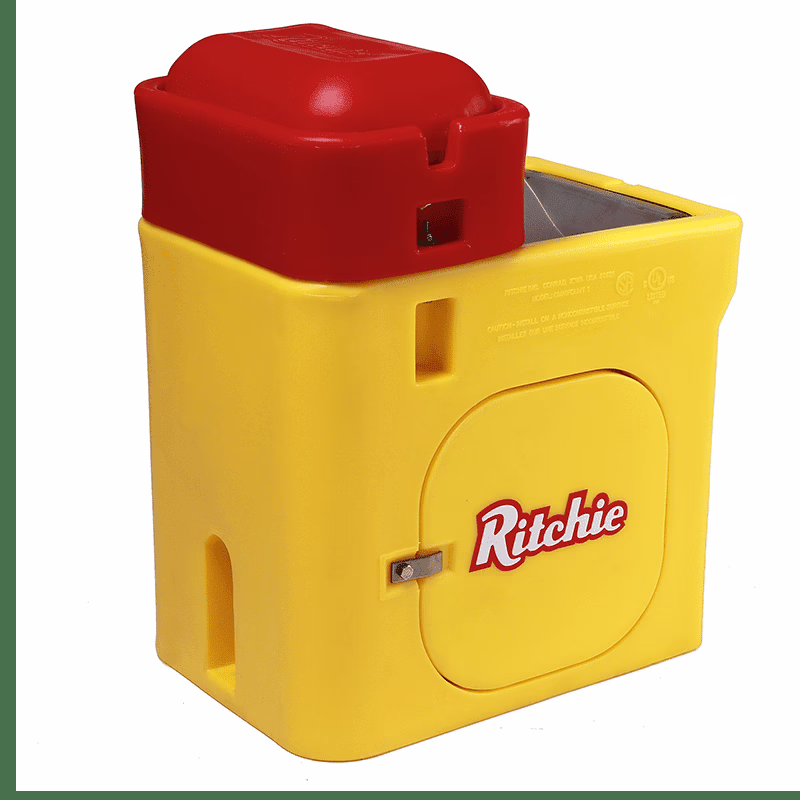

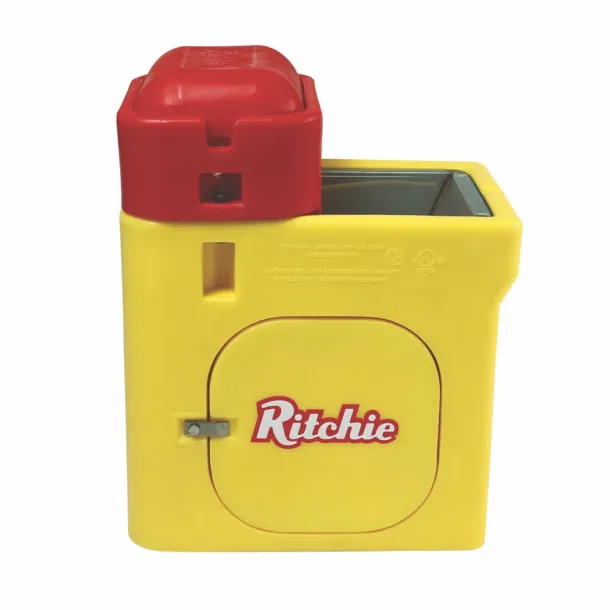

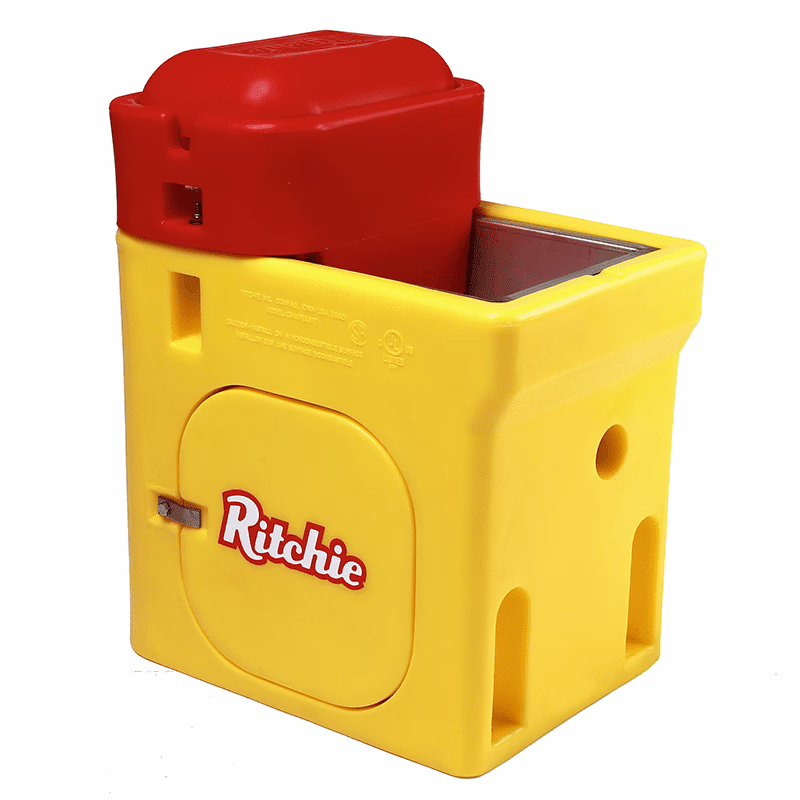

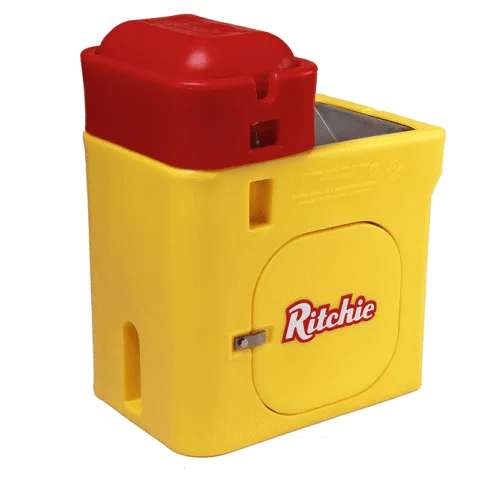

Omni 1
SKU: #18359
MSRP: $569.99
OmniFount blends technology from both our traditional stainless steel units and our insulated poly units to provide the premier livestock fountain. Designed with animal safety in mind, the Omni 1 features smooth rounded edges and a fully insulated casing for energy efficiency. The stainless steel trough features thermostatically controlled heat elements that are attached to the underside for frost free service even under the most severe winter conditions. The Omni 1’s single trough has a fast refill valve providing fresh water for up to 20 head of cattle or horses.
Herd Capacity
- Horses
- 20
- Beef
- 20
- Dairy
- 10
Features
- Easy to maintain and clean
- Large access panel for ease in maintenance
- Heating elements are located directly under the stainless steel trough for exceptional performance and overall heat coverage
- Cable heater provides extra valve and supply line protection
- Insulated with highly energy efficient polyurethane foam, providing an r-factor of 7 per inch
- Durable insulated casing allows for energy efficiency
- Water between 1-20 horses/beef
- OmniFount unit comes complete and ready to install to your electric and water lines.
- 4 - 5" x 3/8" Stainless Steel anchor bolts recommended to anchor to concrete pad.
- 10 year warranty
Specifications & Support
*Package dimensions are listed for individual parts for shipping purposes
- Part No.
- 18359
- Length
- 20in/50.8cm
- Width
- 14.5in/36.83cm
- Overall Height
- 25in/63.5cm
- Shipping Weight
- 39lb/17.69kg
- Drinking Height
- 18in/45.72cm
- Heat
- 173W
- Capacity
- 1.5gal/5.68L
- Herd Capacity
- 20 horses, 20 beef, 10 dairy
Omni 1 Videos
How to change the valve rubber in a Ritchie 1/2 inch valve
Changing the valve rubber in a Ritchie automatic waterer valve will help to elongate the life of your valve. Normal wear and tear or a buildup of deposits from…
How to clean a Ritchie OmniFount automatic waterer
Fresh clean water is important to your animals health. The Ritchie OmniFount series features a selection of six different models. Cleaning each unit is very sim…
How to install the rubber hose and cable heater in a New Ritchie OmniFount
Minimum assembly of the cable heater and included rubber waterline are required once you receive your Omni 1, Omni 2 or Omni-2 Special Ritchie automatic waterer…
