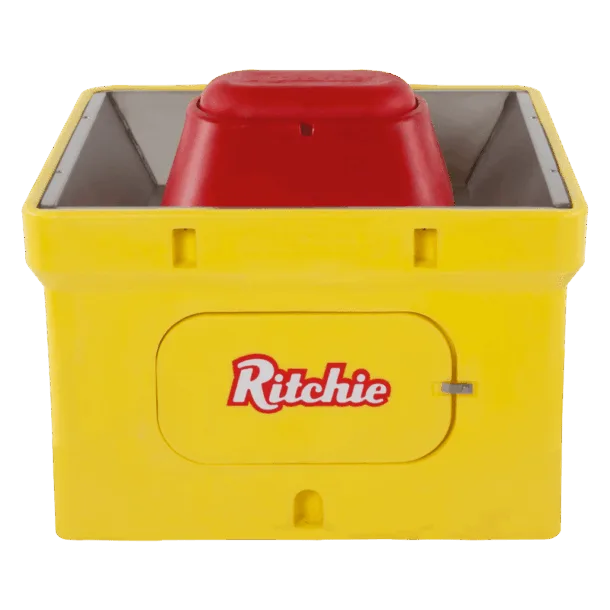

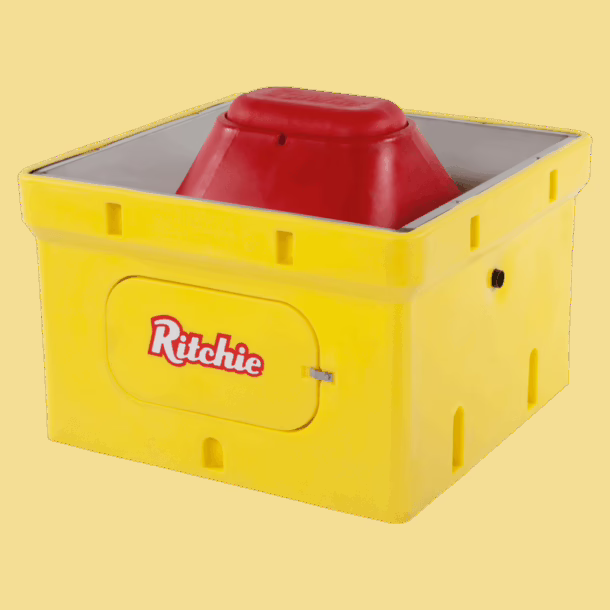

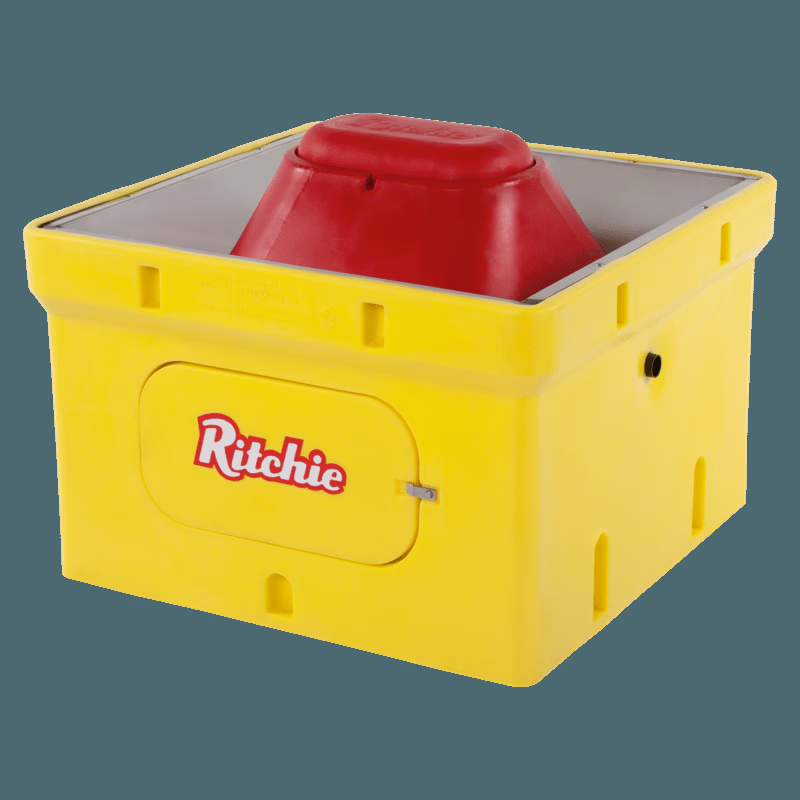

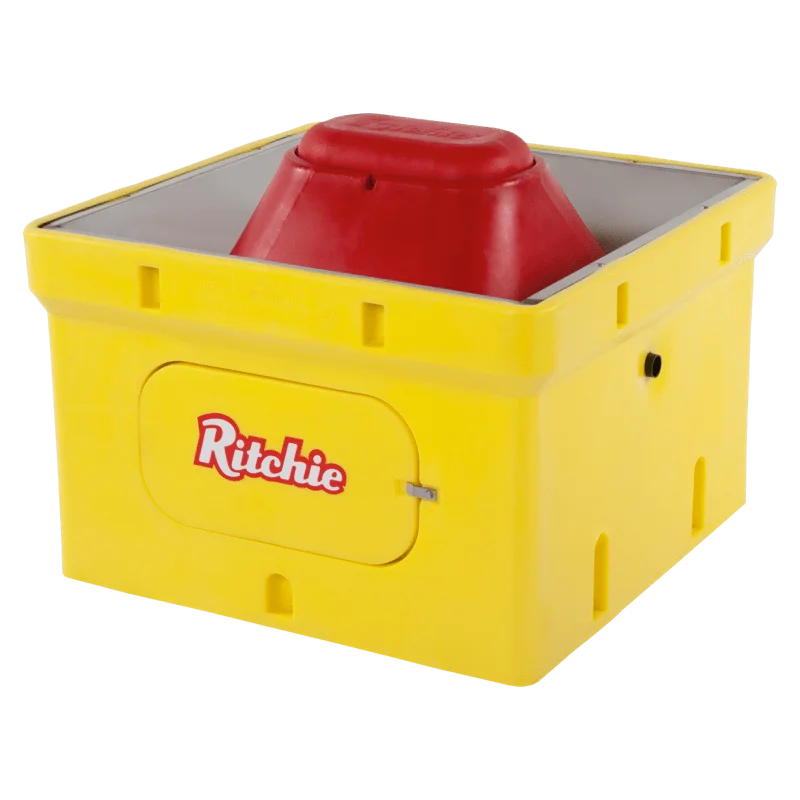

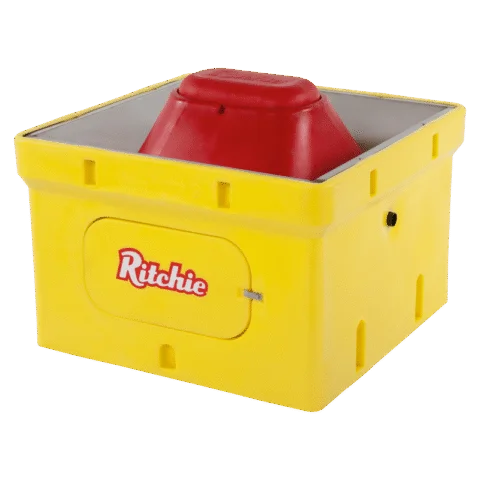

Omni 10

Name: Omni 10
SKU: 18460

SKU: #18460

OmniFount blends technology from both our traditional stainless steel units and our insulated poly units to provide the premier livestock fountain. Designed with animal safety in mind, the Omni 10 features smooth rounded edges, a fully insulated casing for energy efficiency and an all-around drink surface. The stainless steel trough features thermostatically controlled heat elements that are attached to the underside for frost free service even under the most severe winter conditions. The larger Omni 10 is designed for larger herds and it’s fast refill valve will provide fresh water to 275 beef cattle or 135 dairy.

Herd Capacity

Beef: 275
Dairy: 135

Not sold online, locate a dealer or call 1-800-747-0222.

Features

Easy to maintain and clean
Large side access panel for easy access to waterline and heating components
Heating elements are located directly under the all-around stainless steel trough for exceptional performance and overall heat coverage.
Cable heater provides extra valve and supply line protection
Insulated with highly energy efficient polyurethane foam, providing an r-factor of 7 per inch
Durable, impact resistant insulated casing allows for energy efficiency
Water between 275 beef, 135 dairy
Omni Fount units come complete and ready to attach to your water and electric lines.
10 year warranty

Omni 10 Instruction Manual

Specifications & Support

*Package dimensions are listed for individual parts for shipping purposes

Part No.: 18460
Length: 40.5in/102.87cm
Width: 40.5in/102.87cm
Overall Height: 31.5in/80.01cm
Shipping Weight: 150lb/68.04kg
Drinking Height: 26in/66.04cm
Heat: 1048W
Capacity: 28gal/105.99L
Herd Capacity: 275 beef, 135 dairy

OmniFount 10 Parts Breakdown OmniFount 10 Footprint

Omni 10 Videos

How to change the 3/4" valve rubber on larger Ritchie waterers

The valve rubber in the Omni 3, Omni 5 and CattleMaster series may need to be changed due to normal wear and tear or due to a buildup of deposits carried throug…

Ritchie Product Support - How to install a Ritchie Omni Combination Conversion (OCC)

Add versatility to your existing Omni 5 and Omni 10 automatic waterers by adding a lower drinking option for your smaller animals. Ideal for cow calf or hobby …

Ritchie Automatic Waterers - Introducing the New Omni Combination Conversion (OCC)

We are proud to announce a new versatile way to water your large and small animals. The new Omni Combination Conversion provides an easy way to add a lower tro…
