Sku: 16619
$935.00

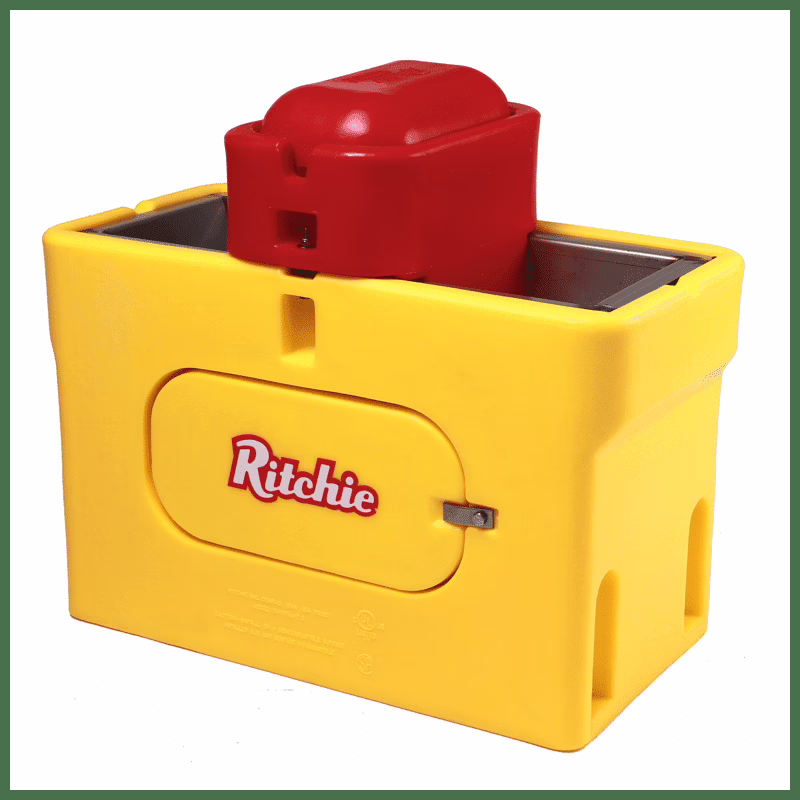

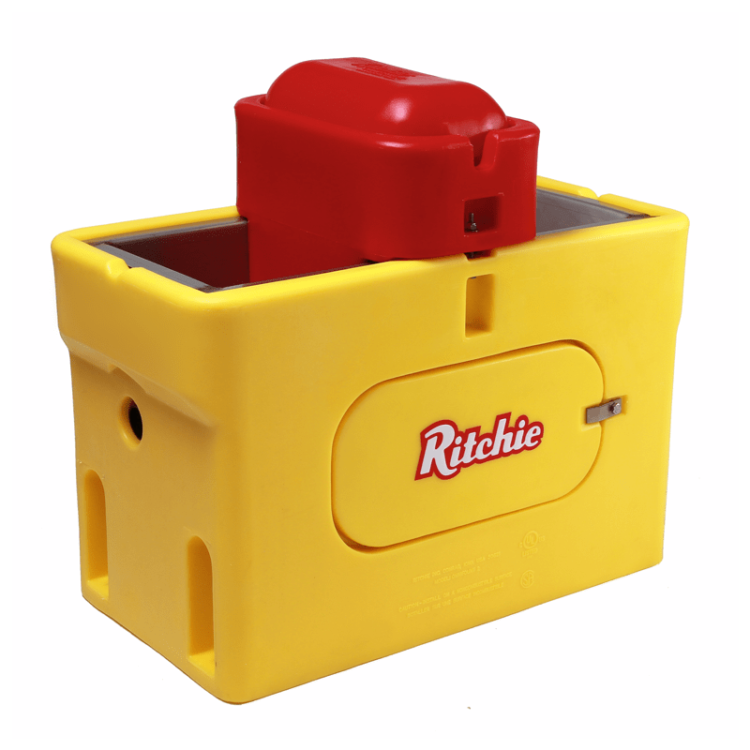

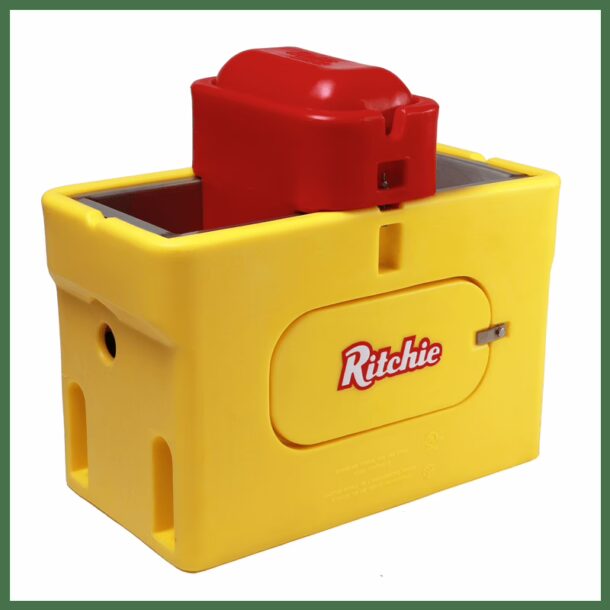

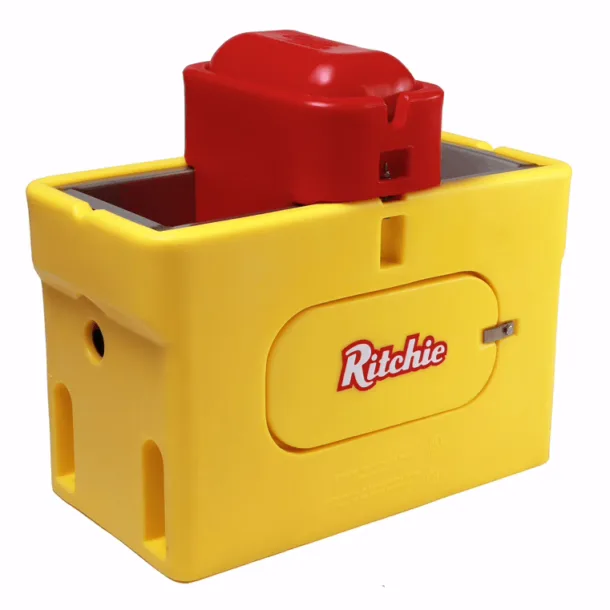

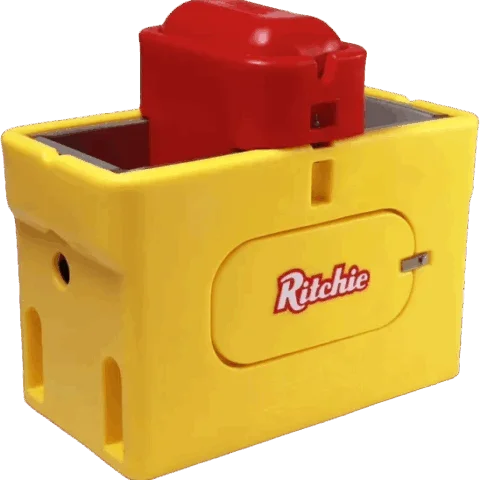

OmniFount blends technology from our traditional stainless-steel units and our insulated poly units to provide an elite heated livestock waterer.

The OmniFount 2 features a stainless steel trough with thermostatically controlled heat elements and a fully insulated design for frost-free service even under the most severe winter conditions. Its quick-refill valve provides fresh water for up to 40 head of beef cattle or horses, while the smooth, rounded edges were created with animal safety in mind.

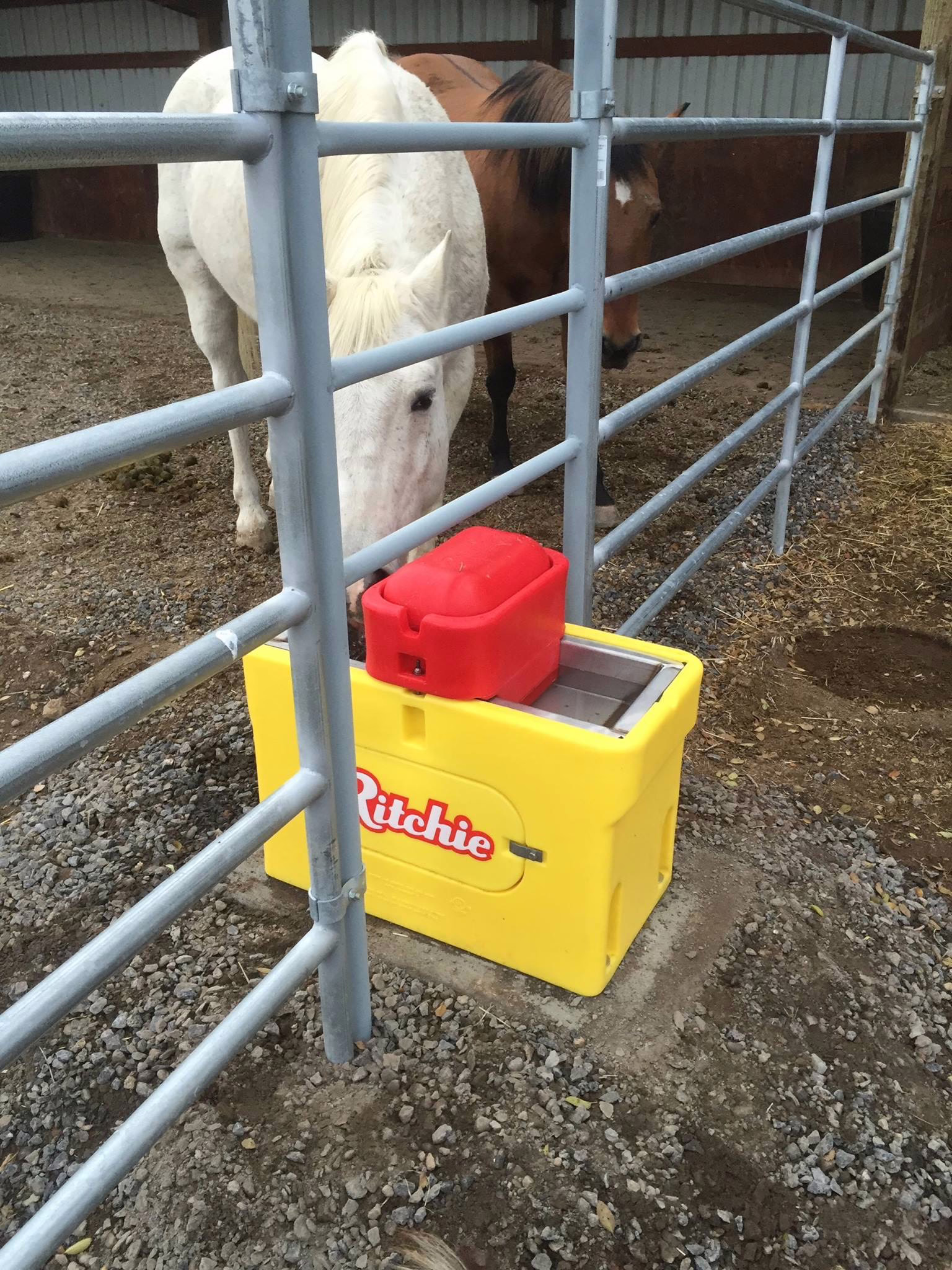

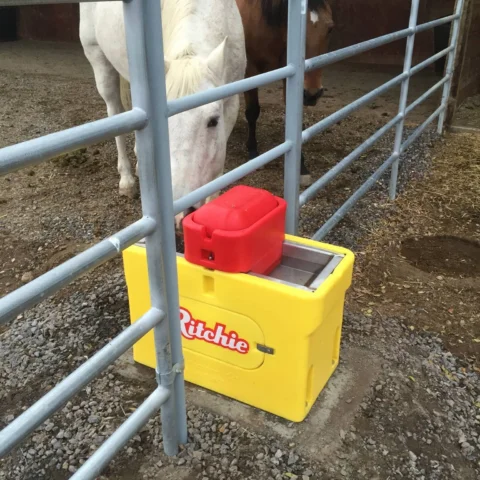

The OmniFount 2 is great for splitting a fence in small pens and paddocks. It has an 18-inch (46-cm) drink height.

Compare
  • Reliable quick-refill valve offers constant access to fresh water.
  • Durable insulated casing boosts energy efficiency.
  • Unit comes complete and ready to install.
Part No.
16619
Length
28.3in/72cm
Width
14.5in/37cm
Height
25in/64cm
Weight
45lbs/20kg
Drinking Height
18 inches
Heat
298W(2.5A@120V)
Herd Capacity
20 Dairy, 40 Horses, 40 Beef

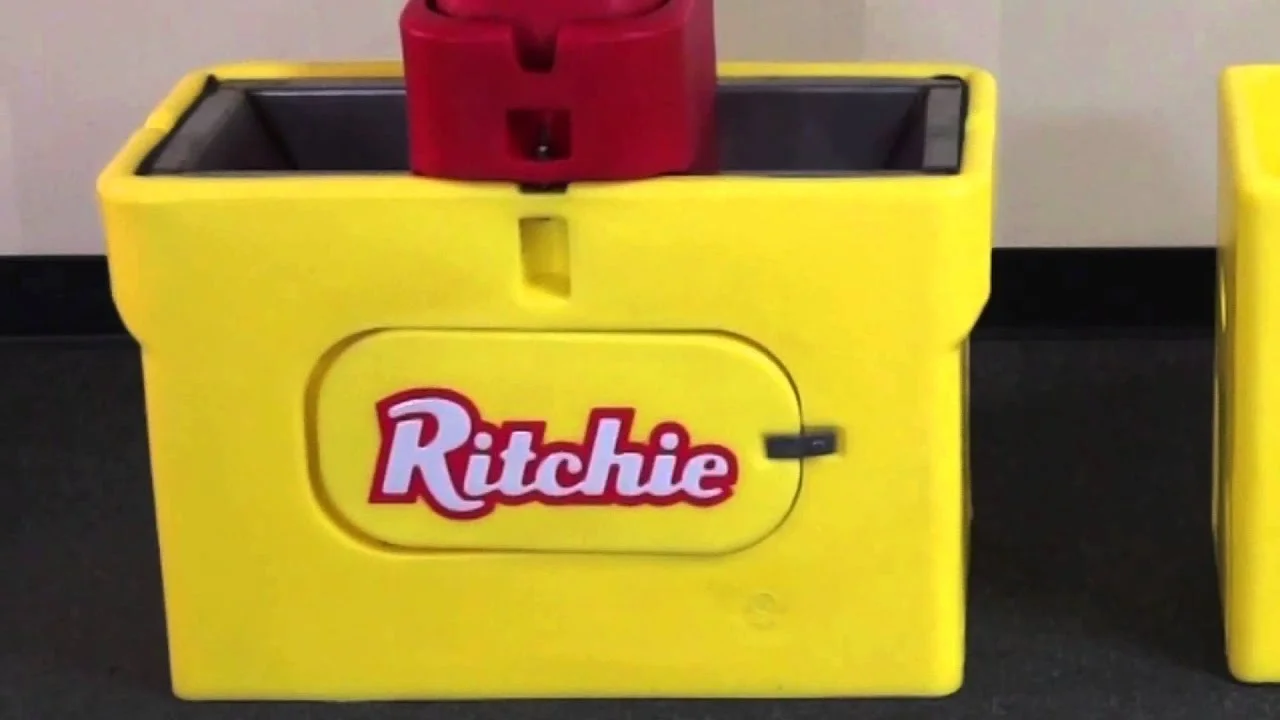

Ritchie Product Comparison: Omni 2 vs. Watermatic 150

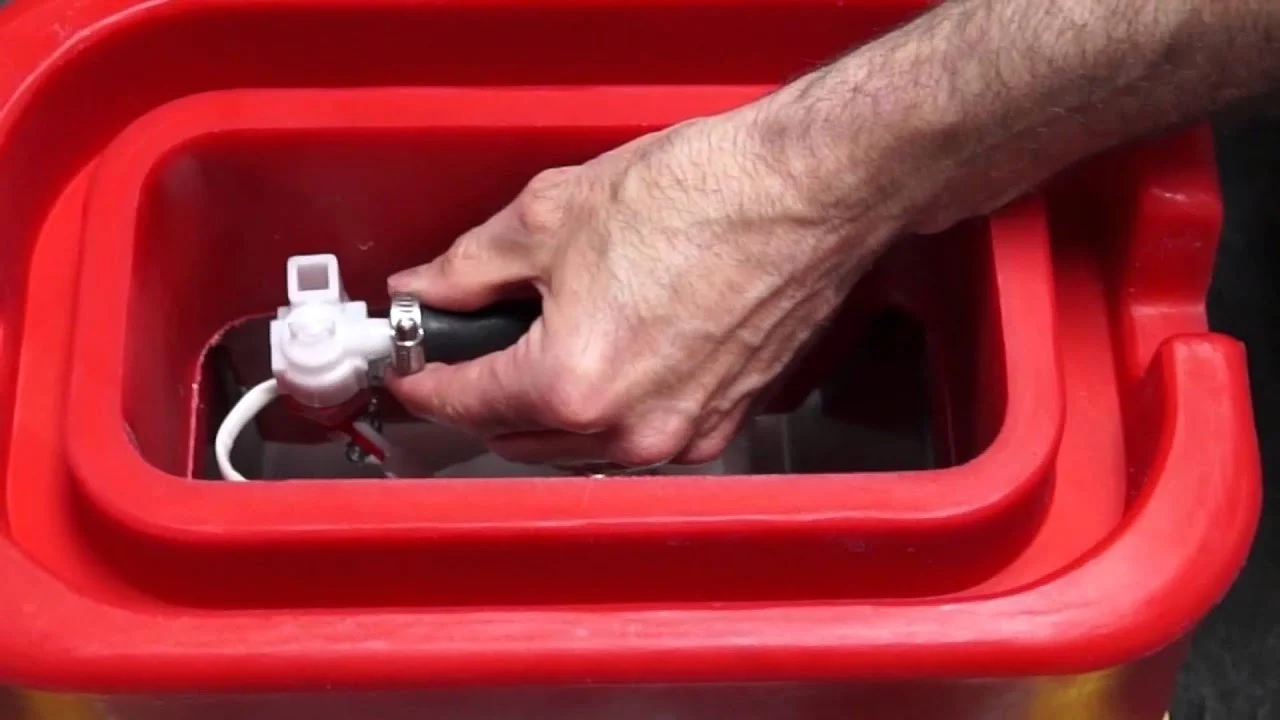

How to install the rubber hose and cable heater in a New Ritchie OmniFount

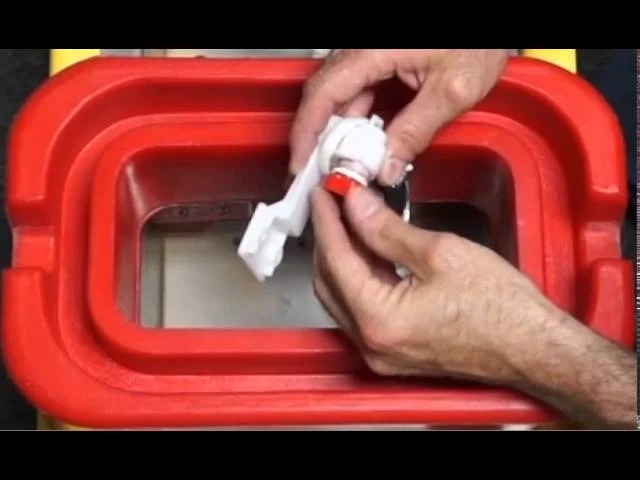

How to change the 1/2" valve in a smaller Ritchie Omni unit

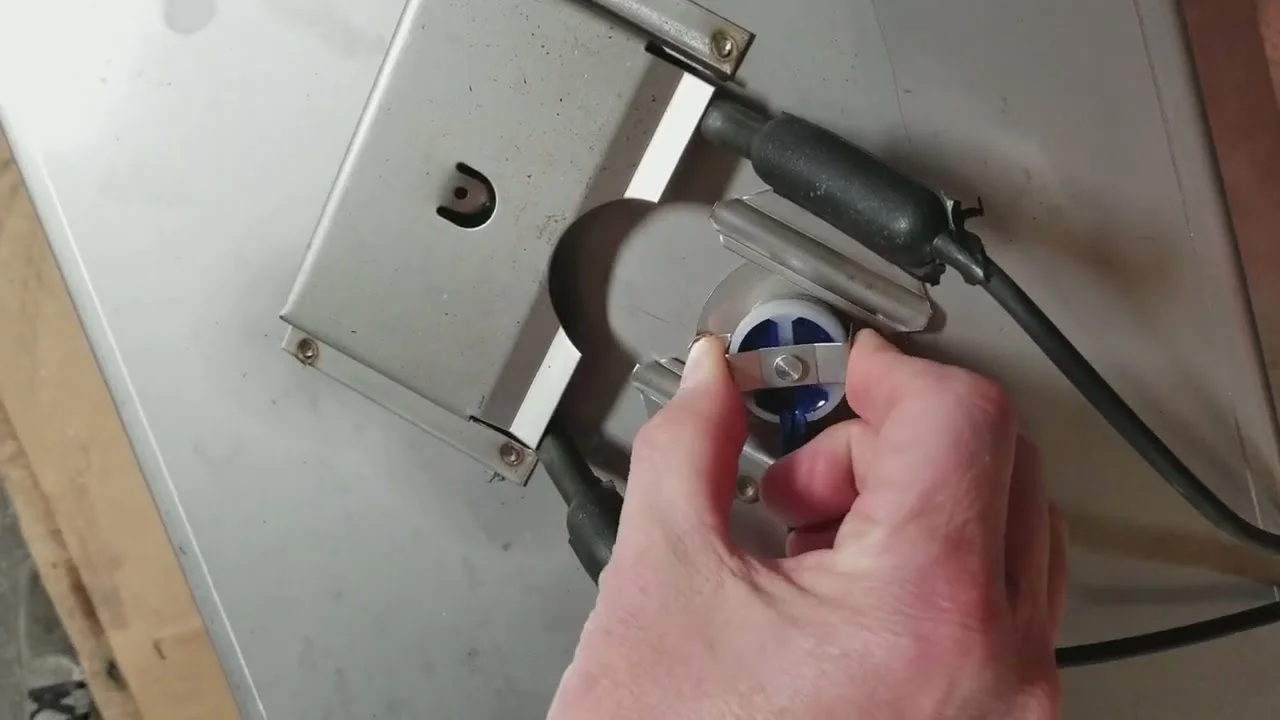

Disk thermostat 11885 setting
1-foot thermal tube top

1-foot thermal tube top

Use the 1-foot thermal tube for shallow frost lines or combine with the 2-foot extension to accommodate any waterline depth.
1/2-inch valve rubber package

1/2-inch valve rubber package

Extend the life of your 1/2-inch valves by replacing the valve rubbers.
2-foot thermal tube extension

2-foot thermal tube extension

Combine the 2-foot extension with other lengths of thermal tubes to accommodate any waterline depth.
4-foot thermal tube top

4-foot thermal tube top

Protect your vertical water supply line from freezing with thermal tubes.
Anchor bolts package

Anchor bolts package

Stainless-steel anchor bolts to secure your Ritchie automatic waterer.
Cable heater

Cable heater

This replacement cable heater protects your valve and water line. For use in waterers with metal troughs.
Disc thermostat

Disc thermostat

Easily adjust the temperature of your heating elements with the disc thermostat.
Drain pipe

Drain pipe

Drain pipe for the OmniFount 1, OmniFount 2 and OmniFount 2 Special automatic waterers.
Drain washer package

Drain washer package

Drain washers for all OmniFount, UltraFount and EcoFount models.
Float with short arm

Float with short arm

Regulate and adjust your automatic waterer level using the Ritchie float.
Green 1/2-inch valve package

Green 1/2-inch valve package

This green 1/2-inch valve is for high-pressure situations for use in smaller Ritchie waterers.
Heater 125W

Heater 125W

Keep your stainless-steel trough from freezing even during the coldest winters.
OmniFount drain plug

OmniFount drain plug

Use this plug to seal the trough in your OmniFount series waterer.
Red 1/2-inch valve package

Red 1/2-inch valve package

This red 1/2-inch valve is for high-pressure situations for use in smaller Ritchie waterers.
Valve bracket

Valve bracket

Use the valve bracket to mount your valve to the side of the valve chamber.

Ritchie Waterers are so well insulated that we have been recognized by electric companies and government agencies for energy efficiency. Below is the estimated cost of electricity per unit, per year.

All costs are based on a rate of 18.05 cents per kilowatt-hour. Your cost may vary. Estimates based on U.S. dollars.

Estimated annual energy cost for OmniFount 2

Oklahoma City, Oklahoma St. Louis, Missouri Conrad, Iowa Sioux Falls, South Dakota Fargo, North Dakota Winnipeg, Manitoba
$38.61 $49.43 $79.81 $86.51 $92.18 $99.90

The best warranty in the business

We stand behind what we build. That’s why our polyethylene (poly) waterers are backed by a 10-year limited warranty* and our stainless-steel troughs are covered by a 10-year, 100% warranty against manufacturing defects and corrosion.

It’s simple: Reliable products should come with a warranty to match.

View warranty details

*Excludes Genesis product line (1-year warranty)

Having good, clean water for our cows and calves 365 days a year is the lifeblood of this operation.
Brent Voss, Voss Angus

Related Articles

Frequently asked questions

It depends on the model. Our waterers range in capacity from 1.2 to 110 gallons (4.5 to 416.4 L). Our quick-refill valves keep water fresh without needing a large trough, and fewer gallons are more efficient to heat. With more than 40 models, there’s a fit for every operation.

No. Circulating water without heat won’t prevent freezing — and it requires a constantly running pump. Some models in more temperate climates can use constant flow instead of heat, with water draining away or into a reservoir.

Ritchie waterers fill automatically when connected to a pressurized line. They use a float and valve system — just like a toilet — to keep water at the right level. See the installation guide for your waterer for more details.

Most poly units have easy-access drain plugs. You simply remove the drain plug, drain, scrub with a brush, rinse and you’re done. On steel units, you’ll also need to remove the top. Check with your vet about which animal-safe cleaners they recommend for your operation.

No. Water is always there and ready.
