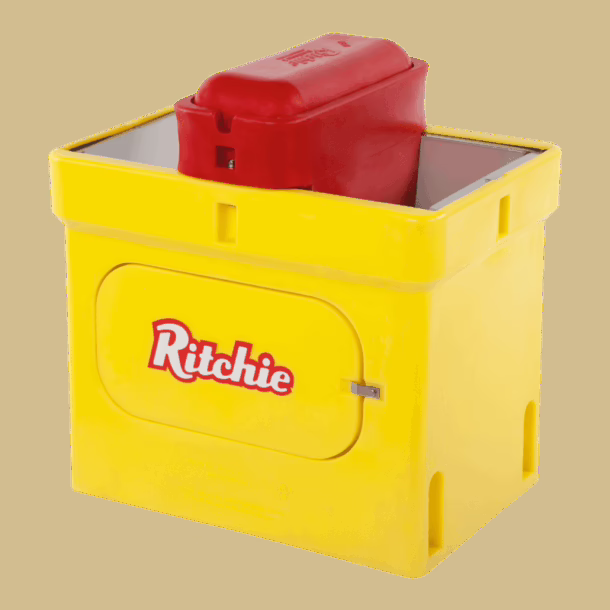

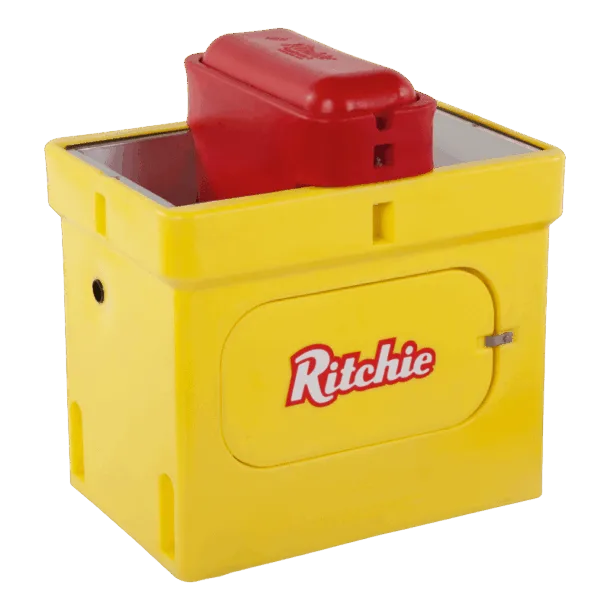

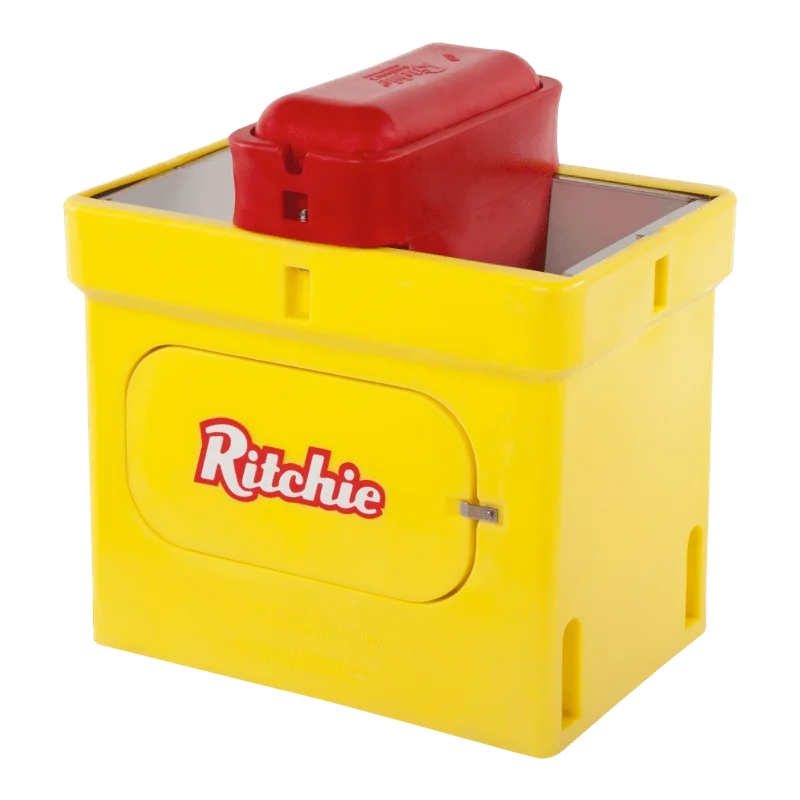

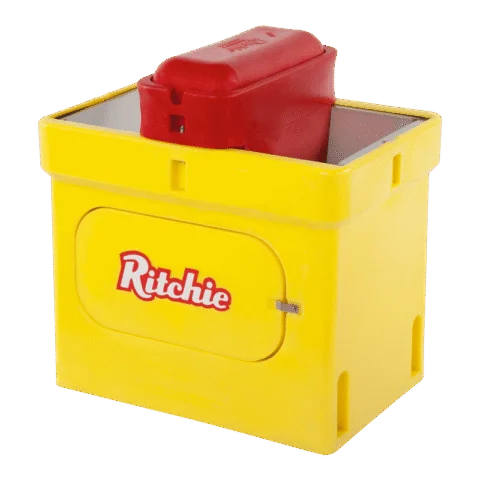

Omni 3 18270

SKU: #18270

OmniFount blends technology from both our traditional stainless steel units and our insulated poly units to provide the premier livestock fountain. Designed with animal safety in mind, the Omni 3 features smooth rounded edges and a fully insulated casing for energy efficiency. The stainless steel trough features thermostatically controlled heat elements that are attached to the underside for frost free service even under the most severe winter conditions. The Omni 3 is designed for larger herds and its fast refill valve will provide fresh water to 100 beef cattle or 50 dairy.



Herd Capacity
Horses
100
Beef
100
Dairy
50
Not sold online Locate a dealer or call 1-800-747-0222.

Key Features

  • Easy to maintain and clean
  • Large access panel for easy access to heating components and waterline
  • Heating elements are located directly under the 304 stainless steel trough for exceptional performance and overall heat coverage
  • Cable heater provides extra valve and supply line protection
  • Insulated with highly energy efficient polyurethane foam, providing an r-factor of 7 per inch
  • Durable insulated casing allows for energy efficiency
  • Water between 100 beef/50 dairy
  • OmniFount units are sold complete and ready to attach to your water and electric lines
  • 10 year warranty

Specifications

*Package dimensions are listed for individual parts for shipping purposes
Part No.
18270
Length
31.5in/80.01cm
Width
22in/55.88cm
Overall Height
33in/83.82cm
Shipping Weight
77lb/34.93kg
Drinking Height
26in/66.04cm
Heat
548W (4.6A @ 120V)
Capacity
10gal/37.85L
Herd Capacity
100 horses, 100 beef, 50 dairy

Omni 3 18270 Videos

How to install the standpipe, valve and float on an Omni 3 or Omni 5

The Ritchie Omni 3 and Omni 5 require minimal assembly prior to installation. Accessories included in this video can be found in the accessory package that acc…

How to change the 3/4" valve rubber on larger Ritchie waterers

The valve rubber in the Omni 3, Omni 5 and CattleMaster series may need to be changed due to normal wear and tear or due to a buildup of deposits carried throug…
