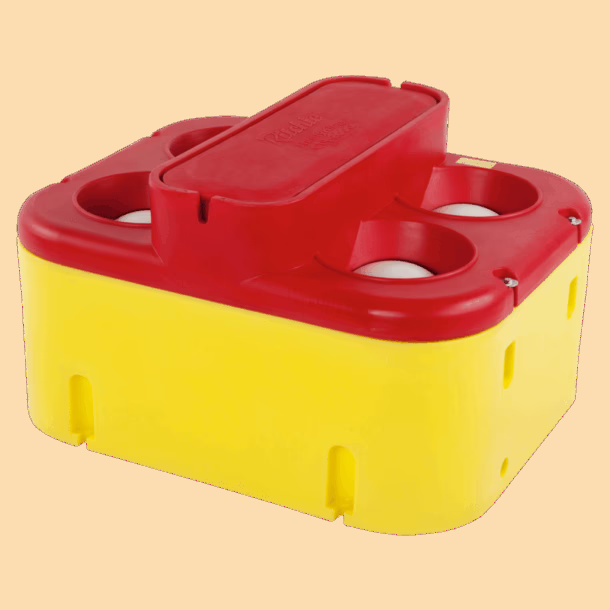

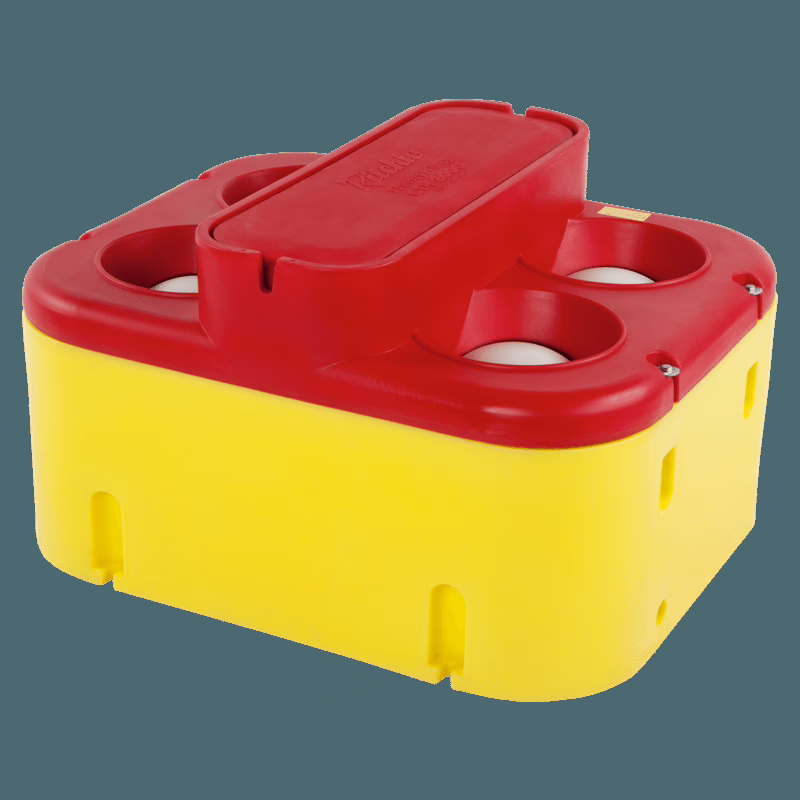

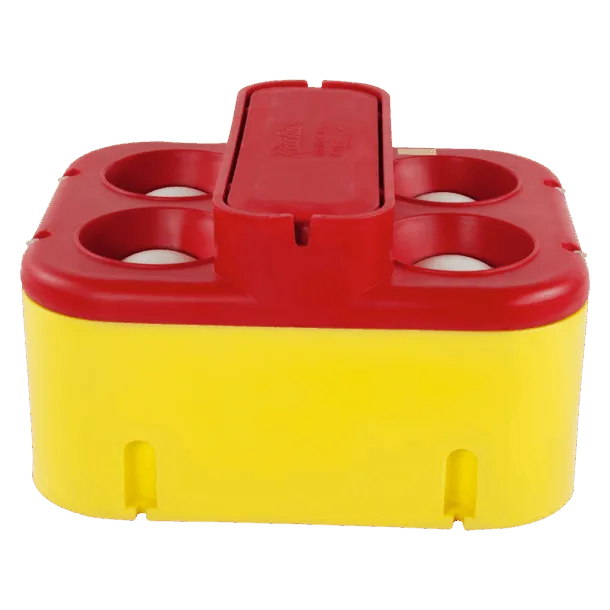

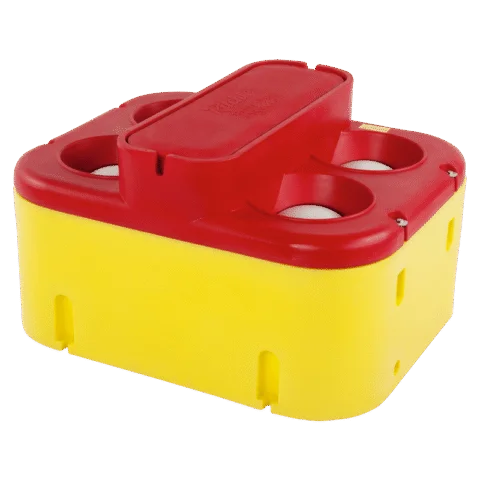

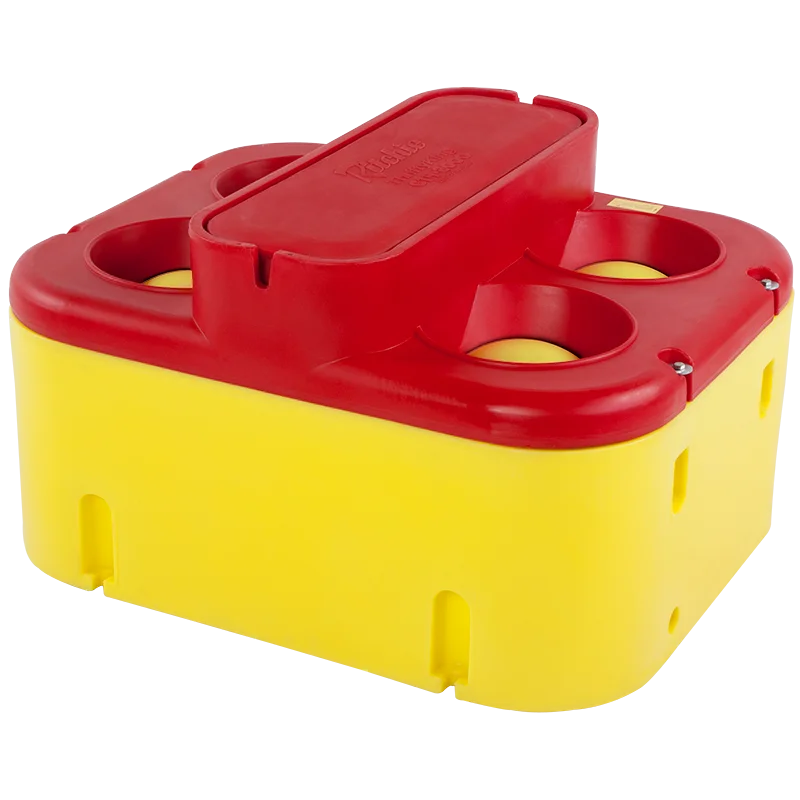

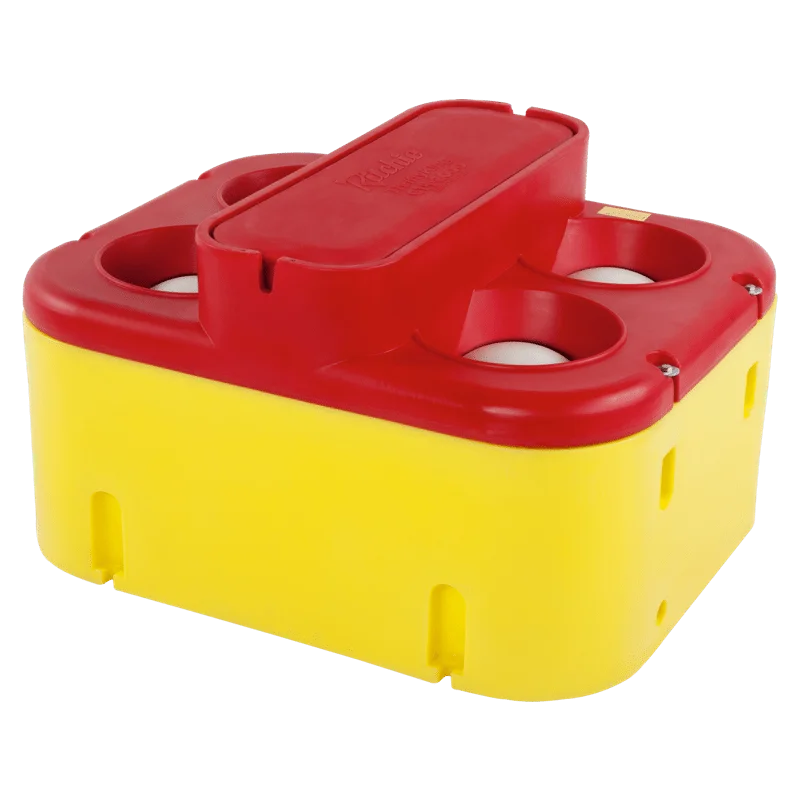

Thrifty King CT4-2000 16430
SKU: #16430

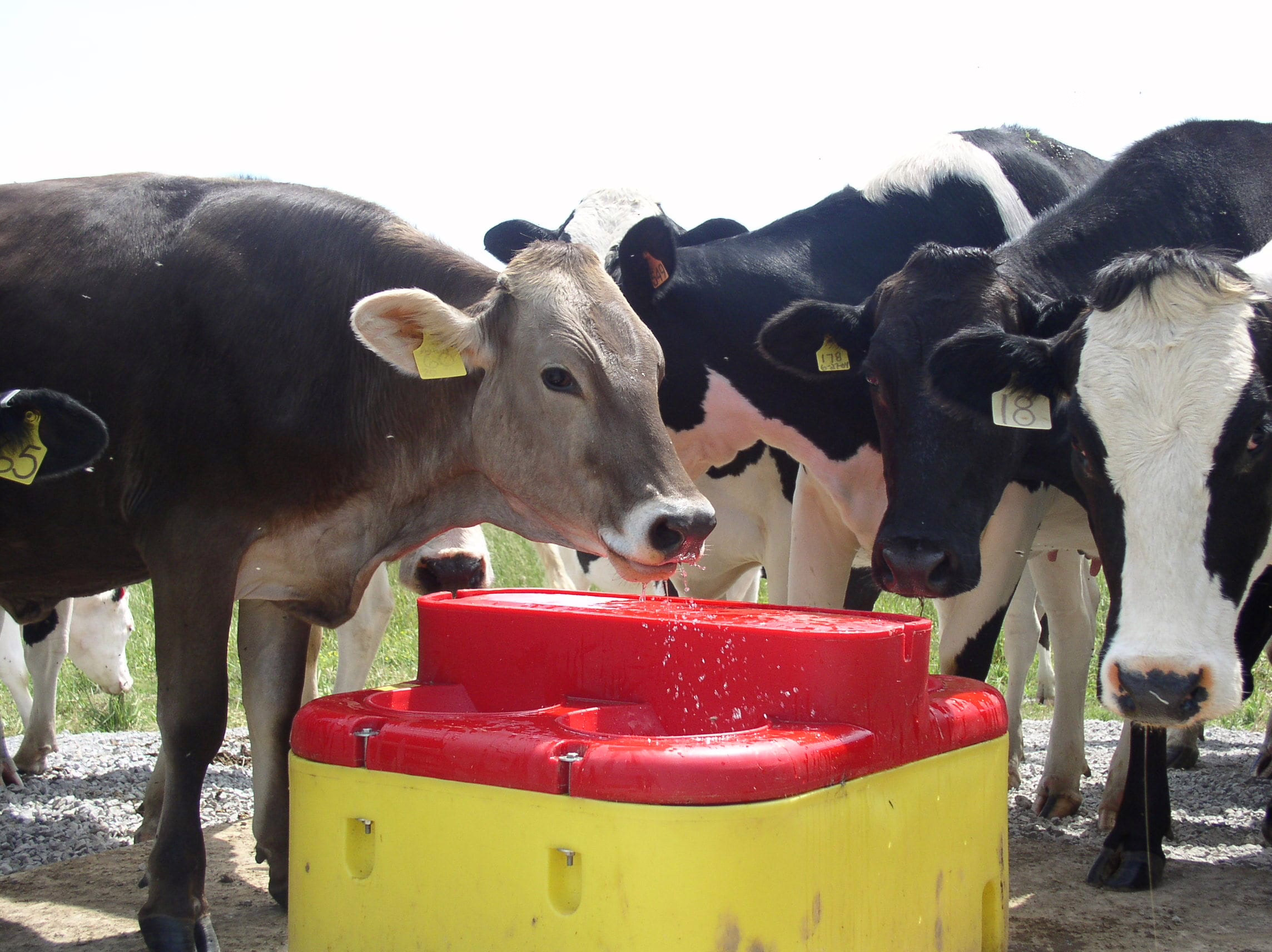

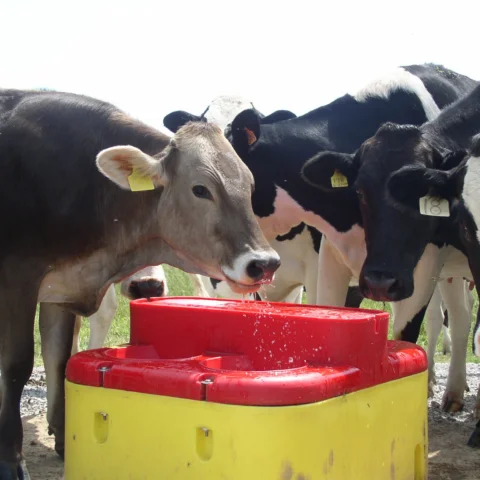

Thrifty King insulates the water so well that you can make it through the winter without supplying heat in many areas, and it takes little electricity in those areas where the winter is severe or when energy free requirements are not met. The water is completely surrounded by fully insulated polyethylene plastic – including an insulated elliptical enclosure covering the drink areas. The covered water keeps the water cooler in summer and reduces loss of water due to evaporation. The closure also protects against mosquitoes breeding, lowering the risk of the spread of West Nile Virus. The CT4-2000 is a four drink area automatic waterer for cattle ideal for a fence line or stand-alone application. Optional summer cover is available for the warmer months.
Herd Capacity
- Beef
- 200
Key Features
- ThermalEqualizer design in patented drinking well eliminates cold spots in water storage
- Elliptical closures tip easily so animals can drink without resistance, unlike round balls which take a great deal of pressure
- Easy access for easy maintenance
- High capacity valve, protected from cold by patented drink well
- Finger-lift service cover; No tools, springs, or clips
- Optional electric heat, immersion heater and supply line heat cable
- 10 year warranty
Specifications
*Package dimensions are listed for individual parts for shipping purposes
- Part No.
- 16430
- Length
- 43in/109.22cm
- Width
- 35in/88.9cm
- Overall Height
- 25in/63.5cm
- Shipping Weight
- 123lb/55.79kg
- Drinking Height
- 19in/48.26cm
- Capacity
- 45.5gal/172.24L
- Herd Capacity
- 200 beef
Thrifty King CT4-2000 16430 Videos
Installation tips for Ritchie Thrifty King series
The Ritchie Thrifty King series superior insulation makes additional heat unnecessary in most cases. The Thrifty King is the most energy efficient fountain on …
Ritchie How-to: Cleaning a Thrifty King automatic waterer
Ritchie Thrifty King waterers are knowing for their superior insulation and in most cases, energy free usage. Cleaning will require some time as Engineer Ed ex…
Winter preparation for Ritchie Thrifty King automatic waterer
Ritchie Thrifty King units can be used energy free or with the optional heat will remain very energy efficient. This video will help prepare your Ritchie Thrif…
Troubleshooting for Ritchie Thrifty King automatic waterers
Ritchie Thrifty King series is one of our most popular series in our automatic waterer line-up. Providing top-tier insulation properties and a durable design, t…

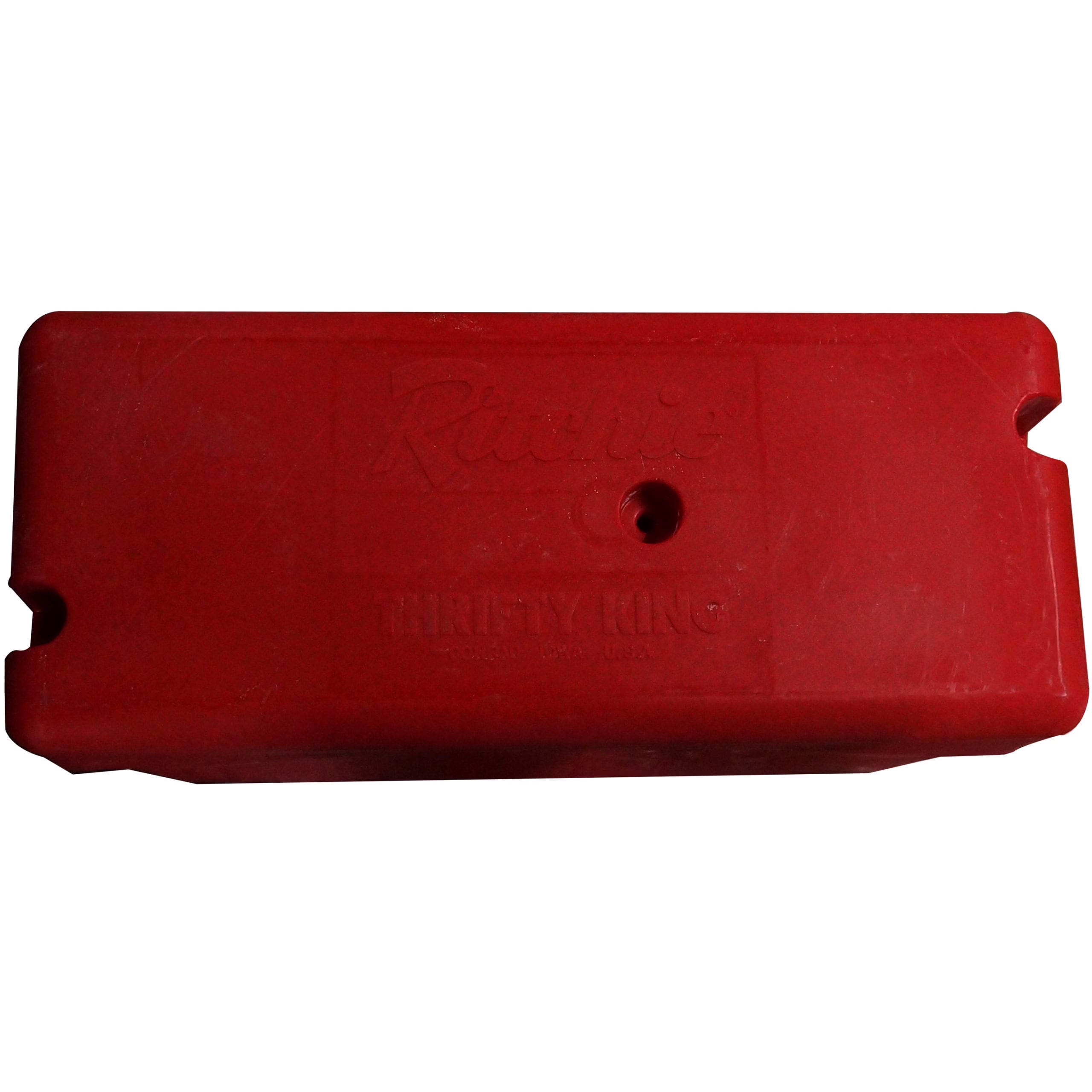

Ritchie Thrifty King Summer Cover #18090
Provide a larger drinking area for your animals. Create an easy to clean environment all summer long with the Ritchie Summer Cover #18090 for your Ritchie Thrif…
How to change the valve rubber on Ritchie Thrifty King CT2 and CT4 waterers
The valve rubber in a Thrifty King CT2 or CT4 may need to be changed due to normal wear and tear or due to a buildup of deposits carried through the valve by it…
Ritchie How-to: Installing the Self-Regulating Heat Cable
All poly Ritchie automatic waterers that do not come standard with heat, the Thrifty King, WaterMatic and WaterMaster series will need supplemental heat in area…
Ritchie Customer Question: Using Energy Free waterer with Sheep and Goats
We are often asked if goats and sheep can use our Thrifty King Series in an energy free setting. Thrifty King fountains are intended to be energy free, howev…
