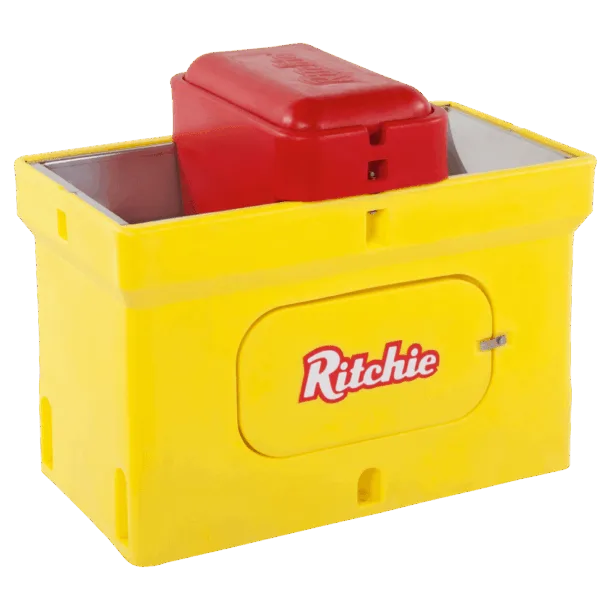

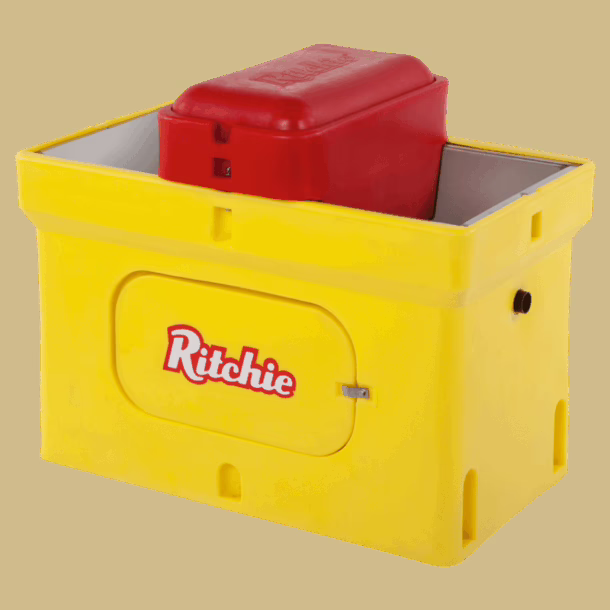

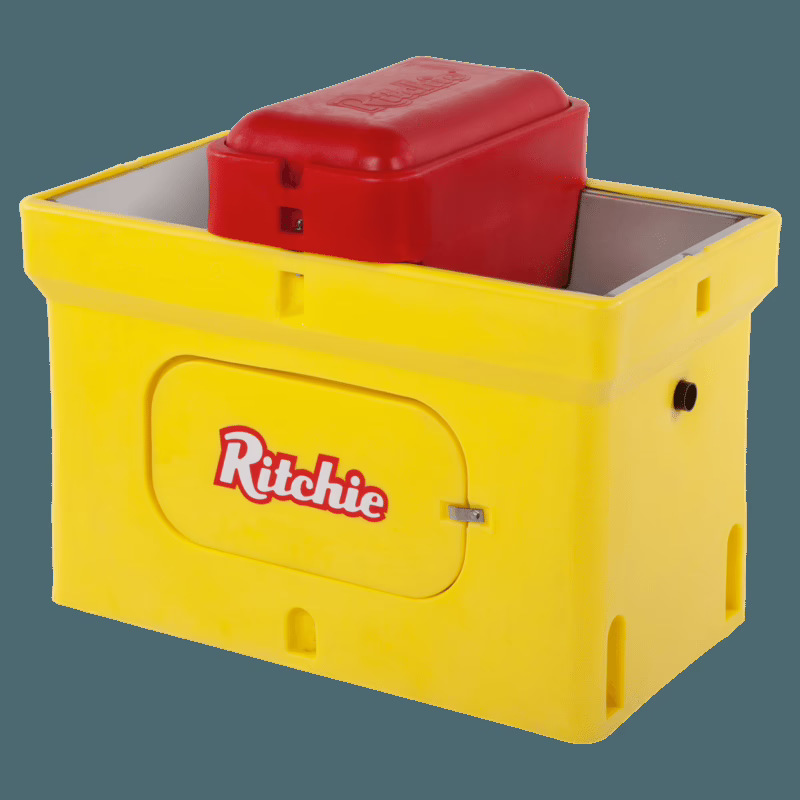

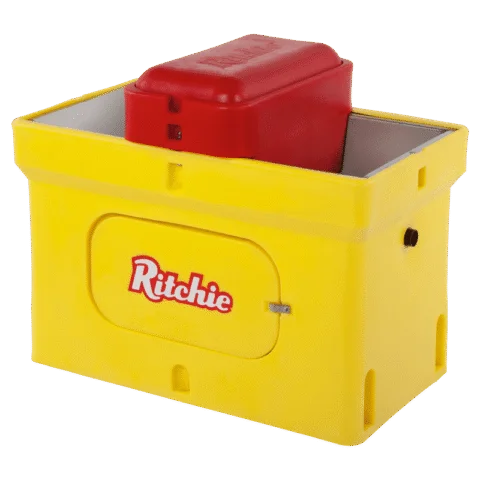

Omni 5 16533

SKU: #16533

OmniFount blends technology from both our traditional stainless steel units and our insulated poly units to provide the premier livestock fountain. Designed with animal safety in mind, the Omni 5 features smooth rounded edges and a fully insulated casing for energy efficiency. The stainless steel trough features thermostatically controlled heat elements that are attached to the underside for frost free service even under the most severe winter conditions. The Omni 5 is designed for larger herds and its fast refill valve will provide fresh water to 150 beef cattle or 75 dairy.



Herd Capacity
Horses
150
Beef
150
Dairy
75
Not sold online Locate a dealer or call 1-800-747-0222.

Key Features

  • Easy to maintain
  • Large access panel
  • Heating elements are located directly under the stainless steel trough for exceptional performance
  • Cable heater provides extra valve and supply line protection
  • Insulated with highly energy efficient polyurethane foam, providing an r-factor of 7 per inch
  • Durable insulated casing allows for energy efficiency
  • Water between 150 beef/75 dairy
  • Omni Fount units come complete and ready to attach to your water and electric lines.
  • 10 year warranty

Specifications

*Package dimensions are listed for individual parts for shipping purposes
Part No.
16533
Length
40in/101.6cm
Width
23.5in/59.69cm
Overall Height
33in/83.82cm
Shipping Weight
92lb/41.73kg
Drinking Height
26in/66.04cm
Heat
548W (4.6A @ 120V)
Capacity
16gal/60.57L
Herd Capacity
150 horses, 150 beef, 75 dairy

Omni 5 16533 Videos

How to install the standpipe, valve and float on an Omni 3 or Omni 5

The Ritchie Omni 3 and Omni 5 require minimal assembly prior to installation. Accessories included in this video can be found in the accessory package that acc…

How to change the 3/4" valve rubber on larger Ritchie waterers

The valve rubber in the Omni 3, Omni 5 and CattleMaster series may need to be changed due to normal wear and tear or due to a buildup of deposits carried throug…

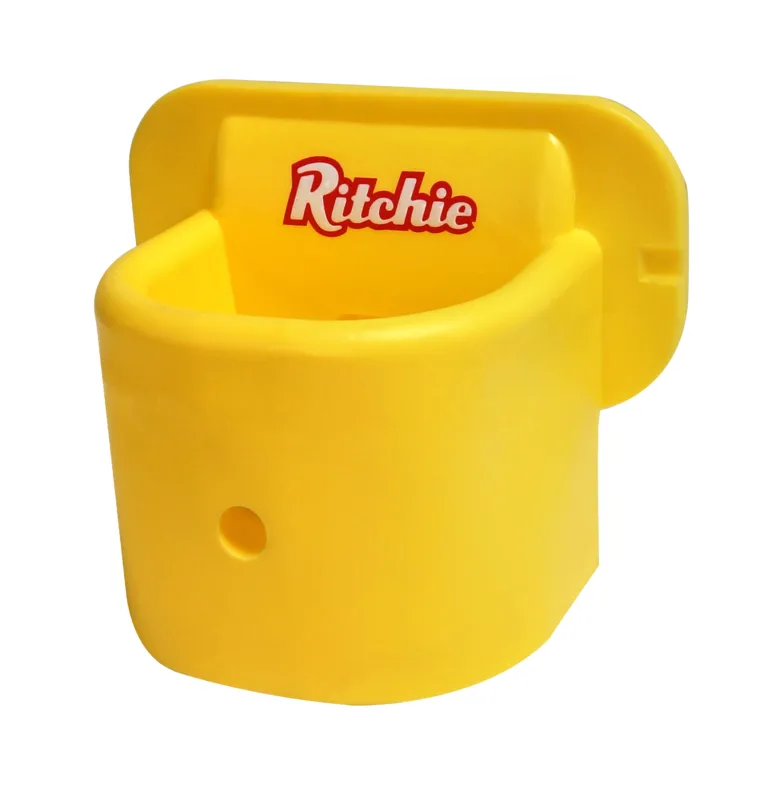

Ritchie Automatic Waterers - Introducing the New Omni Combination Conversion (OCC)

We are proud to announce a new versatile way to water your large and small animals. The new Omni Combination Conversion provides an easy way to add a lower tro…

Ritchie Product Support - How to install a Ritchie Omni Combination Conversion (OCC)

Add versatility to your existing Omni 5 and Omni 10 automatic waterers by adding a lower drinking option for your smaller animals. Ideal for cow calf or hobby …
