Sku: 18007
Contact us for availability and pricing

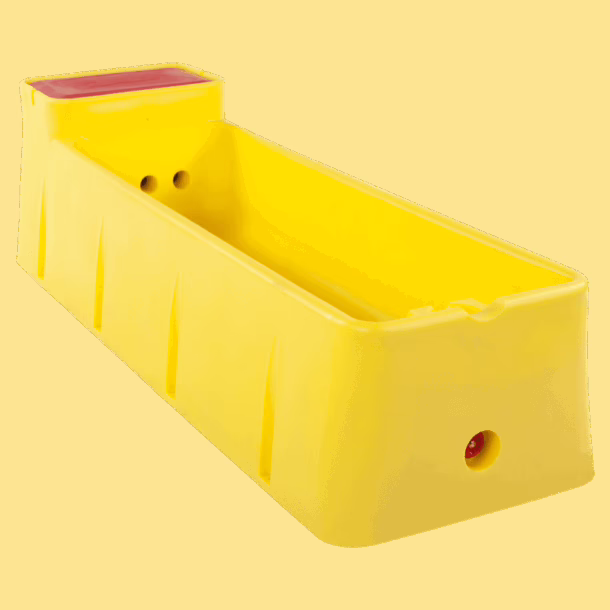

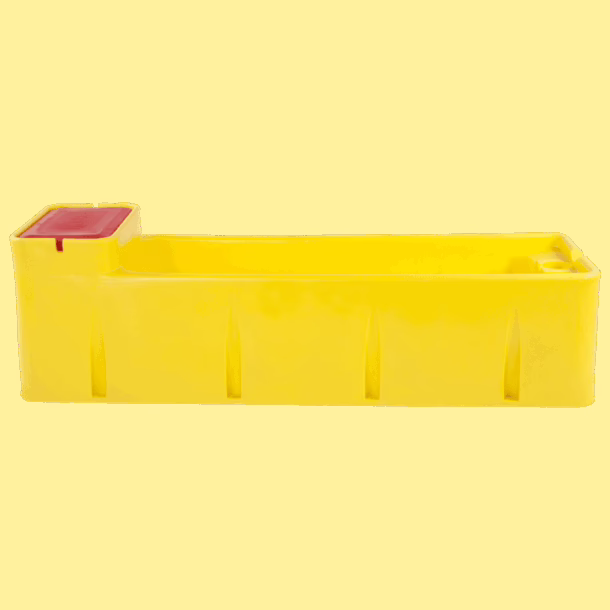

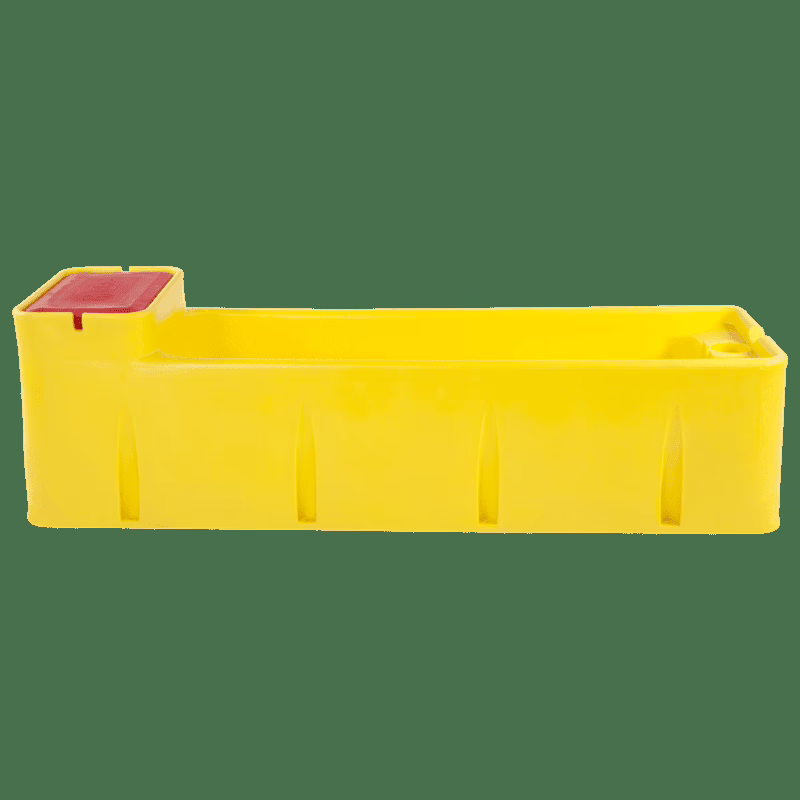

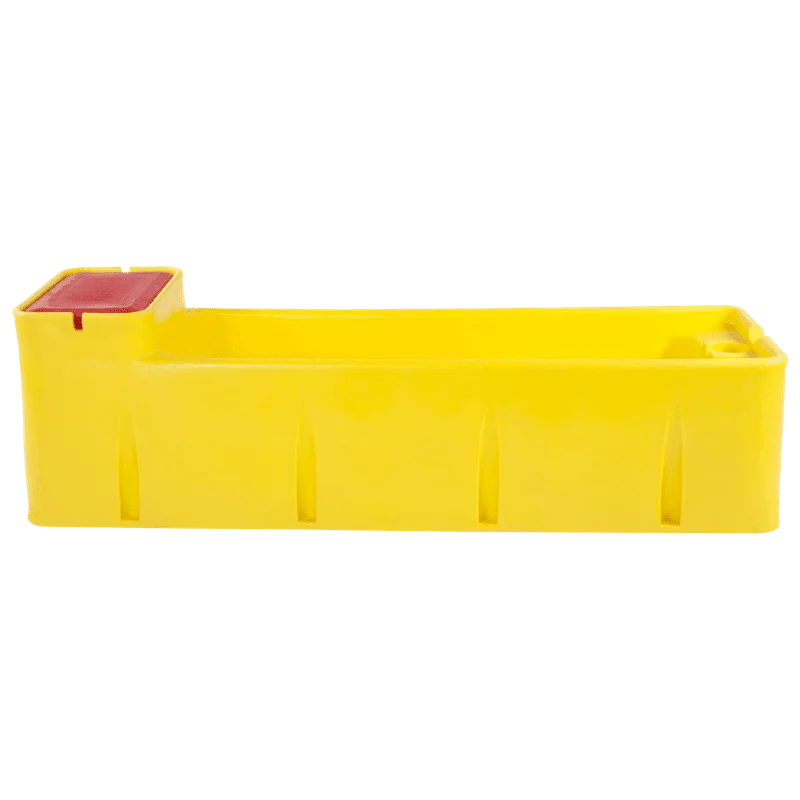

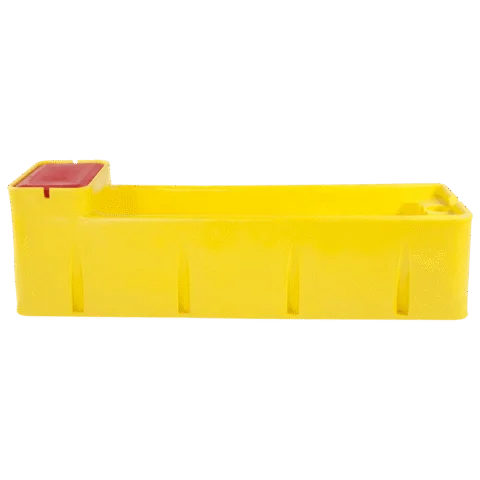

The WaterMaster series features a heavy-duty, fully insulated, one-piece polyethylene body that holds up under the weight of cattle hooves. It requires 75% less energy in the winter than concrete units and won’t pit or cause cleaning problems.
The WaterMaster 96 has a 75-gallon (284-L) capacity, giving you an option when more reserve is required for low-flow applications. The 8-foot-long (2.44-m) deep trough slopes to a large drain that can be emptied, cleaned and refilled fast. The deep, wide trough allows all-around access to water and can be set up for split-fence access. An optional constant-flow feature kit is sold separately.
Optional heat
75 gallons
150 Dairy
300 Beef
-
Built for rugged feedlot, pasture and dairy conditions.
-
Quick-refill valve lowers the storage volume for fresher water.
-
Solid polyurethane foam insulation keeps water ice-free longer in the winter and cooler in the summer.
- Part No.
- 18007
- Length
- 96in/244cm
- Width
- 33in/84cm
- Height
- 28in/71cm
- Weight
- 210lbs/95kg
- Drinking Height
- 22 inches
- Herd Capacity
- 150 Dairy, 300 Beef
1-foot thermal tube top
Use the 1-foot thermal tube for shallow frost lines or combine with the 2-foot extension to accommodate any waterline depth.
2-foot thermal tube extension
Combine the 2-foot extension with other lengths of thermal tubes to accommodate any waterline depth.
2-inch plug package
Plug package for Thrifty King CT series, EZFount, Genesis and Omni Combination waterers.
3-inch plug package
Plug is designed to fit snug in WaterMatic waterers.
3/4-inch HP valve assembly
More buoyant than prior models, the 3/4-inch HP valve features a higher flow rate and a thumb screw to easily adjust the water height.

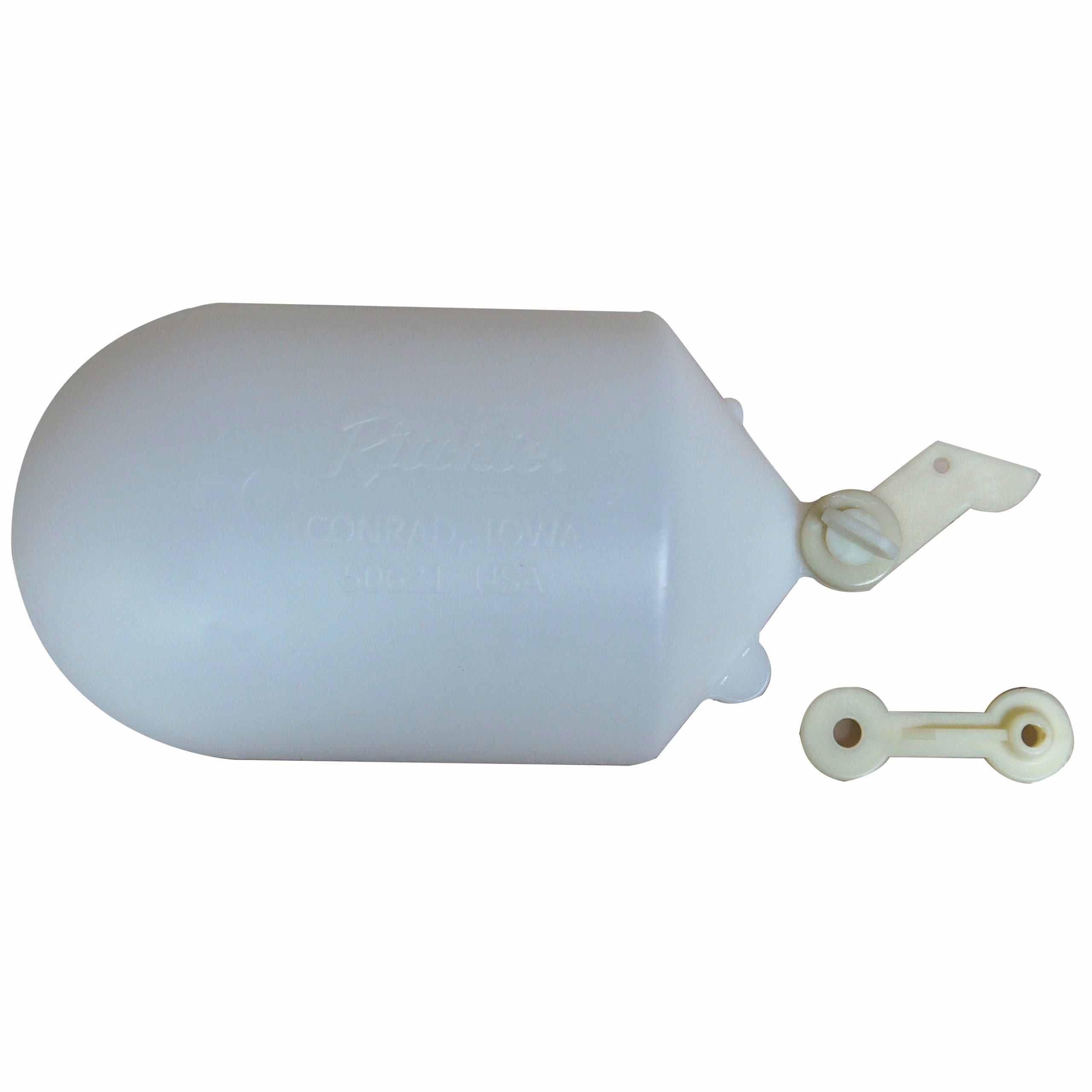

3/4-inch series float
Regulate and adjust the water level in automatic waterers designed for herds with over 200 head.

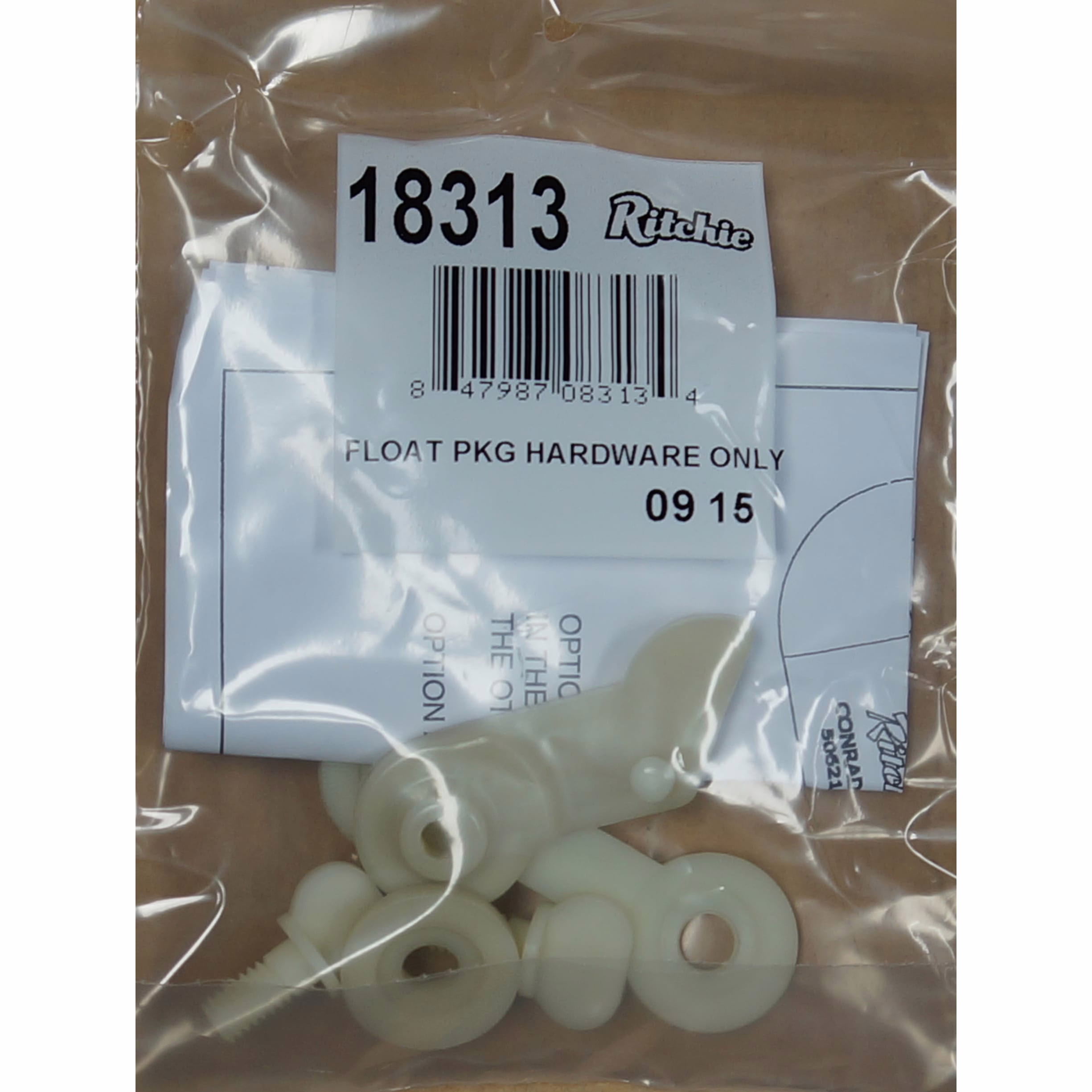

3/4-inch series float hardware package
This replacement hardware package is for the 3/4-inch float series.
3/4-inch valve rubber package
Extend the life of your 3/4-inch valves by replacing the valve rubbers.
4-foot thermal tube top
Protect your vertical water supply line from freezing with thermal tubes.
Anchor bolts package
Stainless-steel anchor bolts to secure your Ritchie automatic waterer.
HP valve bracket
HP bracket used with all Thrifty King CT Series waterers, all WaterMasters and WaterMatic units that use the 3/4-inch valve.
Immersion heater
Add heat protection to your all-plastic Ritchie waterers for cold winter days.
Red 3/4-inch valve series
Replace your existing valves in your larger Ritchie automatic waterers.
Self-regulating heat cable
Add protection to your valve and waterline with our self-regulating heat cable with a built in thermostat.
