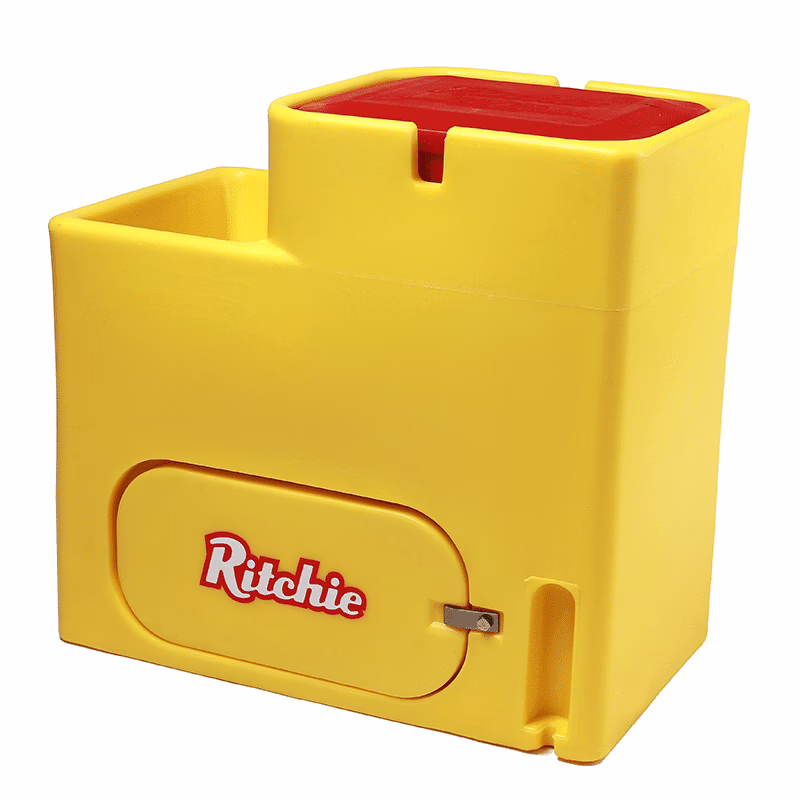

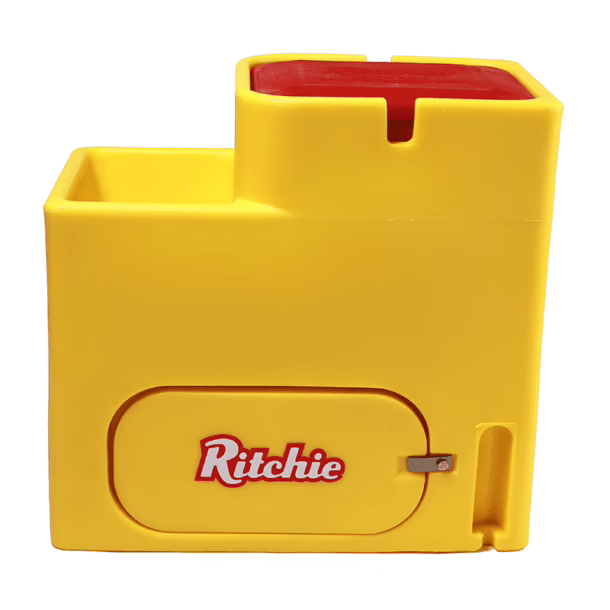

WaterMatic 100

SKU: #18165

MSRP: $349.99

The WaterMatic family combines the best features of Ritchie waters, with the easiest operation and simple maintenance. The WaterMatic 100 is a small compact design is fully insulated to keep the water cool in the summer and provides added protection during the winter. The drop in cover is easy to lift for maintenance and cleaning. Trough slopes towards drain hole for easy cleaning and debris removal. Drain plugs can be moved to the valve chamber opening for short-term trough shut-off during cleaning when the pen is empty or during excessively cold nights. Low capacity and fast refill valve allow for low water waste and fresh water on demand. Optional heat package is required in freezing conditions.

Herd Capacity
Horses
20
Beef
20
Sheep
50

Features

  • No gaskets to crack, tear or leak
  • One piece rugged fountain body
  • Generous side access panel
  • Easy to clean and maintain
  • All surfaces slope to drains for easy clean out
  • Ideal for individual stalls or pens
  • 10 year warranty

Specifications & Support

*Package dimensions are listed for individual parts for shipping purposes
Part No.
18165
Length
24.5in/62.23cm
Width
14in/35.56cm
Overall Height
23.5in/59.69cm
Shipping Weight
36lb/16.33kg
Drinking Height
18in/45.72cm
Capacity
2.8gal/10.6L
Herd Capacity
20 horses, 20 beef, 50 sheep

WaterMatic 100 Videos

How to remove the Immersion Heater in a Ritchie automatic waterer

Immersion heaters provide added protection to all plastic Ritchie waterers during the winter. Minimum maintenance is required to keep them functioning for seve…

How to clean a Ritchie WaterMatic automatic waterer

Cleaning your WaterMatic series waterer frequently is quick and easy following the steps shown in this video. With little water waste, you can ensure your anim…

How to change the valve rubber in a Ritchie 1/2 inch valve

Changing the valve rubber in a Ritchie automatic waterer valve will help to elongate the life of your valve. Normal wear and tear or a buildup of deposits from…
