With the WaterMatic series, you get Ritchie’s top-performing features built into a waterer that simplifies operation and upkeep.

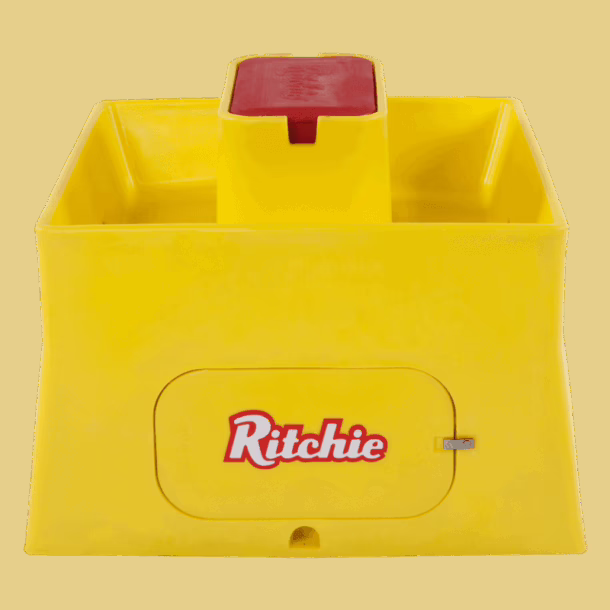

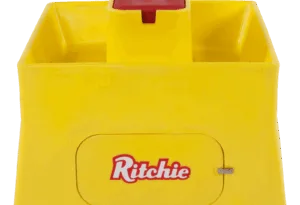

Great for larger herds, the WaterMatic 1000 features a 26-inch-high (66-cm) all-around drink surface and is impact resistant. It’s fully insulated to keep water cool in the summer and provide added protection during the winter. An optional heat package is required in freezing conditions. It has a drop-in cover for easy maintenance and cleaning, and its sloped trough makes cleaning even easier, guiding debris toward the drain openings. Drain plugs can be relocated to the valve compartment for short-term shutoff — ideal during cleaning, when pens are empty or during cold snaps. With a low-capacity system and a quick-refill valve, the unit conserves water while consistently supplying fresh drinking water. The WaterMatic 1000 can water up to 275 beef cattle or 135 dairy cows.
-
Created for fence-line applications.
-
All-around drinking surface is great for large herds.
-
One-piece rugged fountain body offers durability for long product life.
- Part No.
- 18110
- Length
- 42in/107cm
- Width
- 42in/107cm
- Height
- 32in/81cm
- Weight
- 129lbs/59kg
- Drinking Height
- 26 inches
- Herd Capacity
- 135 Dairy, 275 Beef
1-foot thermal tube top
2-foot thermal tube extension
3/4-inch HP valve assembly
3/4-inch series float
3/4-inch series float hardware package

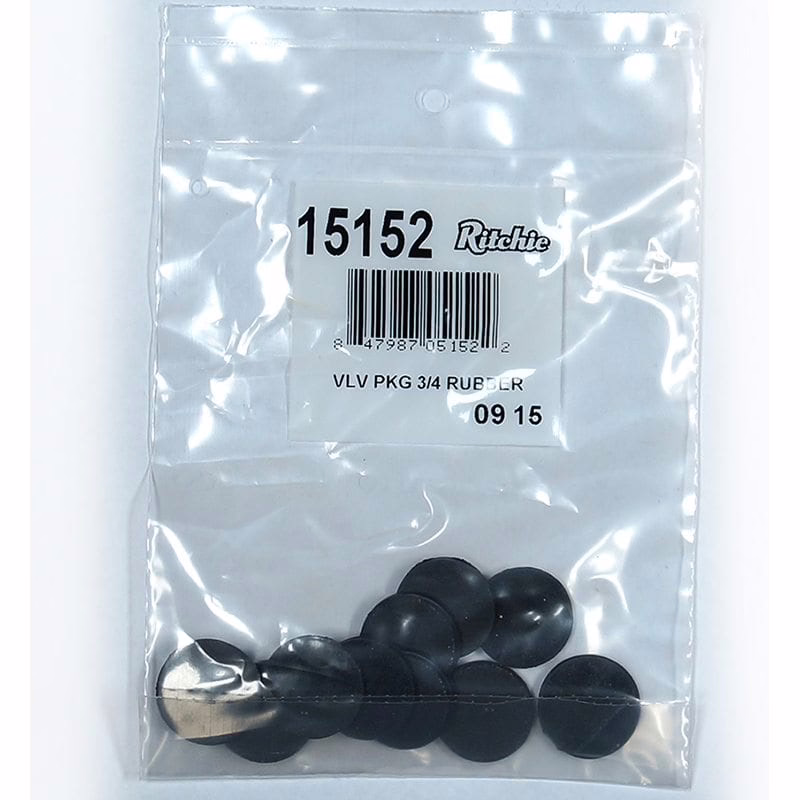

3/4-inch valve rubber package
3-inch plug package
4-foot thermal tube top
Anchor bolts package

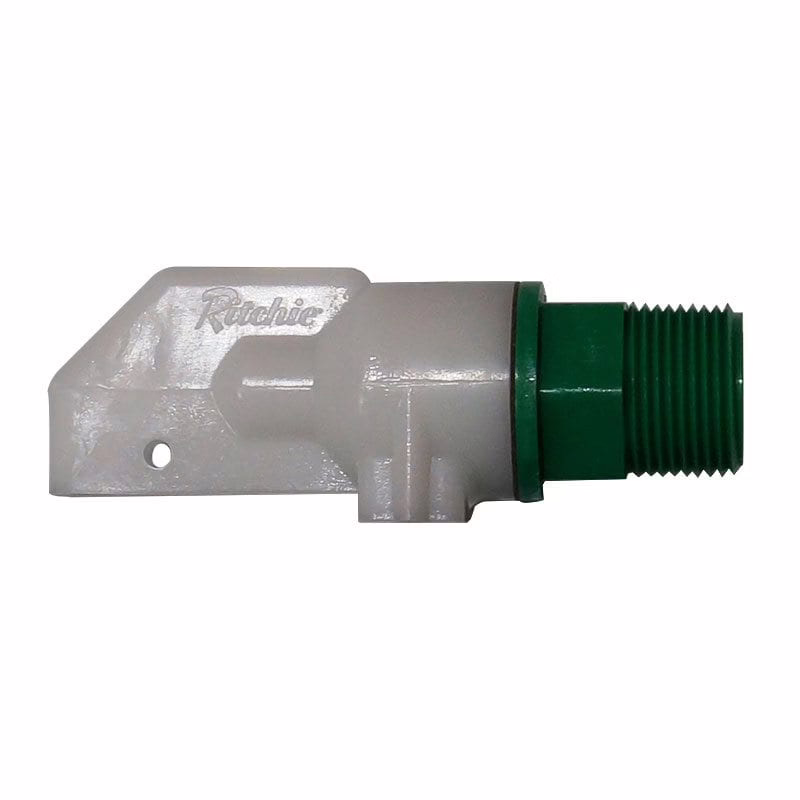

Green 3/4-inch valve series
Replace your existing valves in your larger green Ritchie automatic waterers.
HP valve bracket
Immersion heater

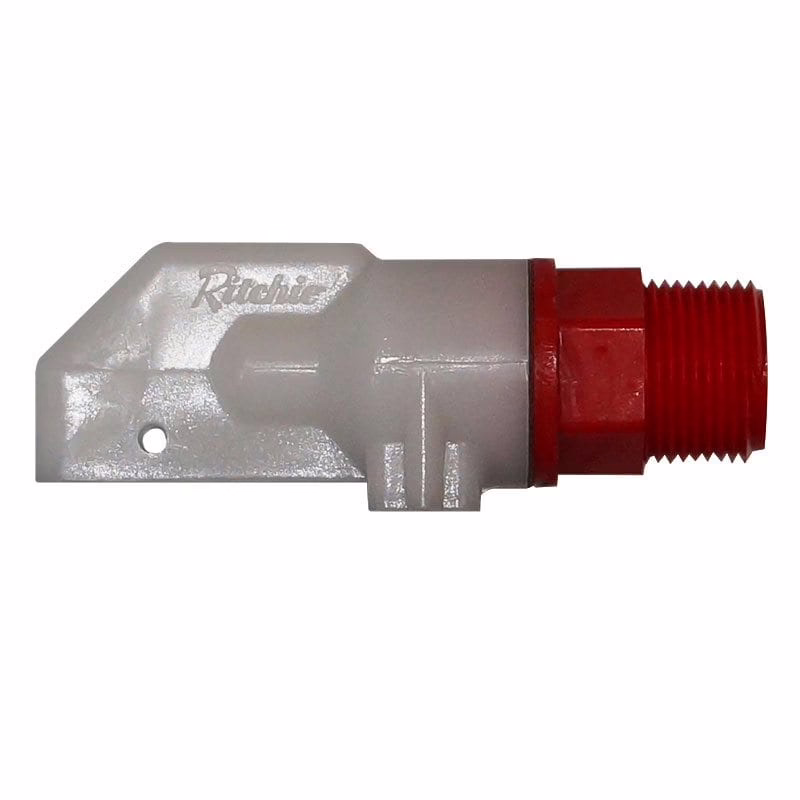

Red 3/4-inch valve series
Self-regulating heat cable
Ritchie Waterers are so well insulated that we have been recognized by electric companies and government agencies for energy efficiency. Below is the estimated cost of electricity per unit, per year.
All costs are based on a rate of 18.05 cents per kilowatt-hour. Your cost may vary. Estimates based on U.S. dollars.
Estimated annual energy cost for WaterMatic 1000
| Oklahoma City, Oklahoma | St. Louis, Missouri | Conrad, Iowa | Sioux Falls, South Dakota | Fargo, North Dakota | Winnipeg, Manitoba |
|---|---|---|---|---|---|
| $48.60 | $62.21 | $100.44 | $108.86 | $115.99 | $125.71 |
