The WaterMatic family combines the best features of Ritchie waterers, with easy operation and simple maintenance.

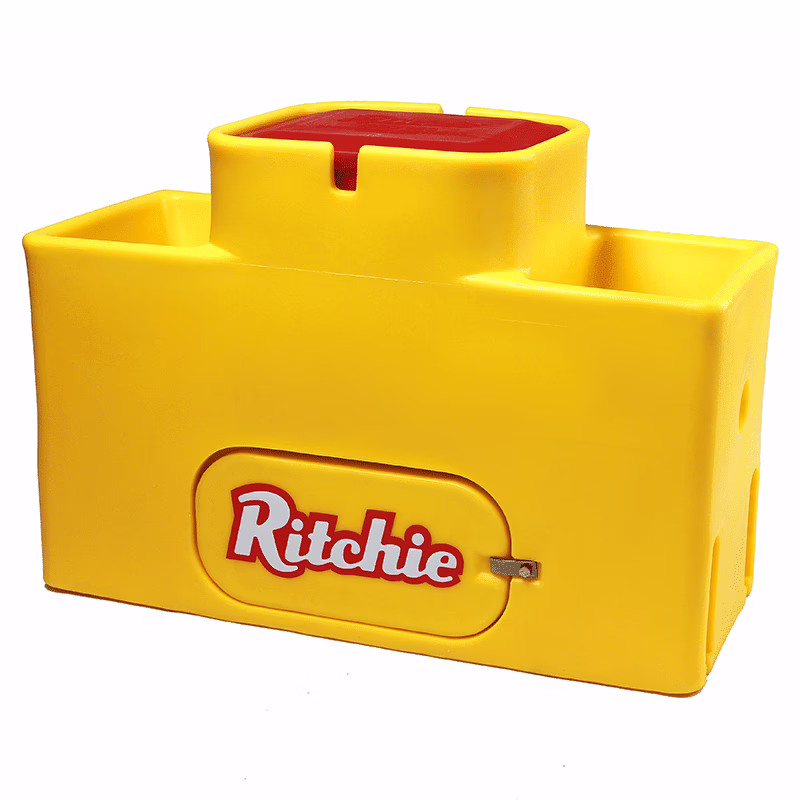

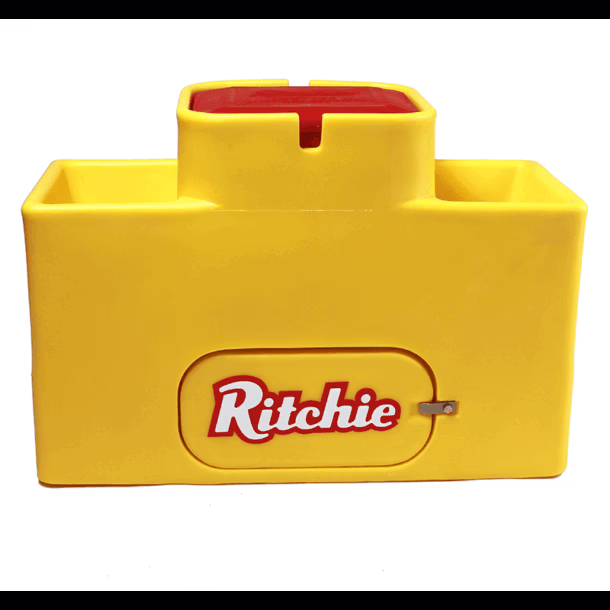

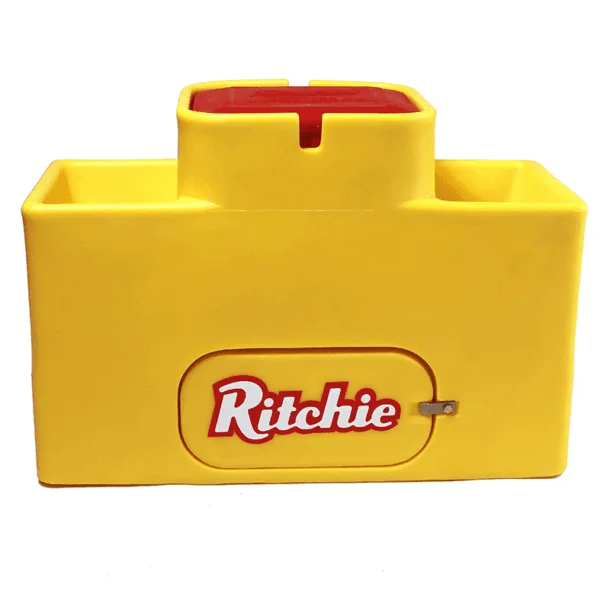

The WaterMatic 150 is ideal for fence-line applications with its compact two-trough design. The waterer is fully insulated to keep the water cool in the summer and to provide added protection during the winter. An optional heat package is required in freezing conditions. The drop-in cover is easy to lift for maintenance and cleaning and the troughs slope towards drain holes for easy cleaning and debris removal. Drain plugs can be moved to the valve chamber opening for short-term trough shutoff during cleaning, when the pen is empty or during excessively cold nights. Its low capacity and quick-refill valve minimize water waste while delivering fresh water on demand. The WaterMatic 150 has an 18-inch (46-cm) drink height and waters up to 40 horses or beef cattle, or up to 100 sheep.
-
Created for fence-line applications.
-
All surfaces slope to drains for easy clean out.
-
Generous side-access panel simplifies maintenance.
- Part No.
- 18166
- Length
- 33.5in/85cm
- Width
- 14in/36cm
- Height
- 23.5in/60cm
- Weight
- 50lbs/23kg
- Drinking Height
- 18 inches
- Herd Capacity
- 40 Horses, 40 Beef, 100 Sheep/Goats
1-foot thermal tube top
1/2-inch valve rubber package
2-foot thermal tube extension
3-inch plug package
4-foot thermal tube top
Access panel hardware package
Anchor bolts package
Float with long arm
Float with short arm
Green 1/2-inch valve package
Immersion heater
Red 1/2-inch valve package
Self-regulating heat cable
Valve bracket
Ritchie Waterers are so well insulated that we have been recognized by electric companies and government agencies for energy efficiency. Below is the estimated cost of electricity per unit, per year.
All costs are based on a rate of 18.05 cents per kilowatt-hour. Your cost may vary. Estimates based on U.S. dollars.
Estimated annual energy cost for WaterMatic 150
| Oklahoma City, Oklahoma | St. Louis, Missouri | Conrad, Iowa | Sioux Falls, South Dakota | Fargo, North Dakota | Winnipeg, Manitoba |
|---|---|---|---|---|---|
| $25.88 | $33.37 | $53.86 | $58.39 | $62.19 | $67.41 |
