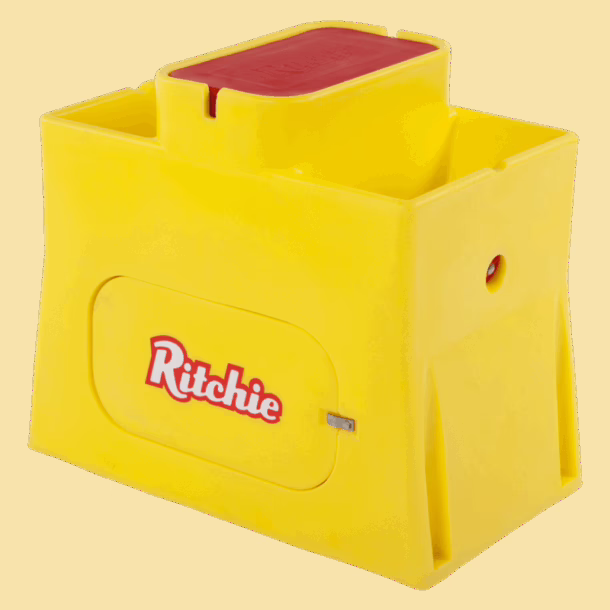

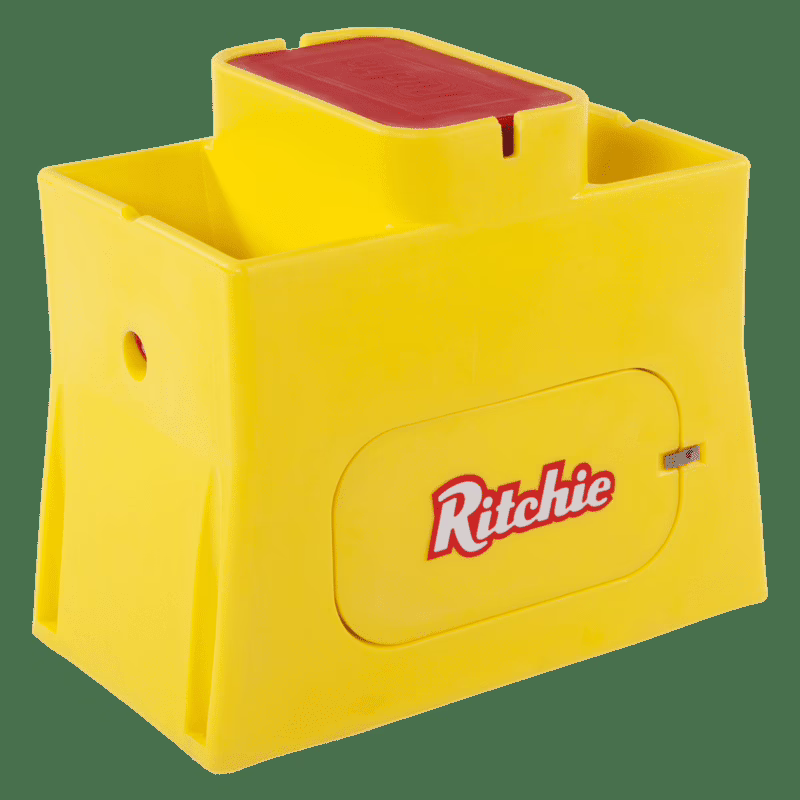

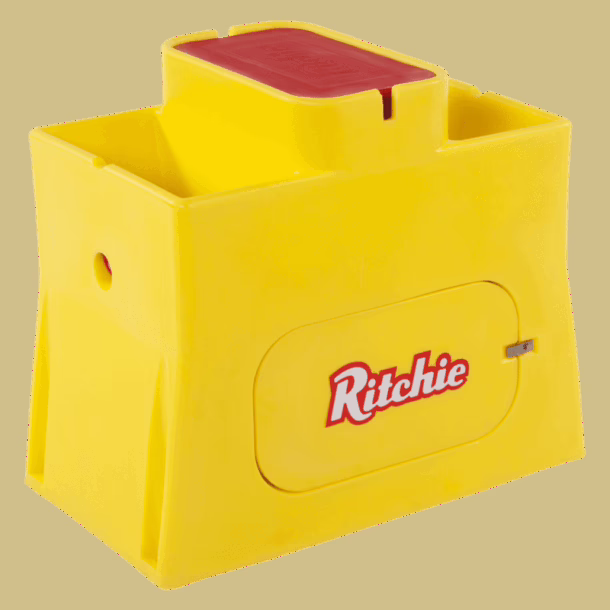

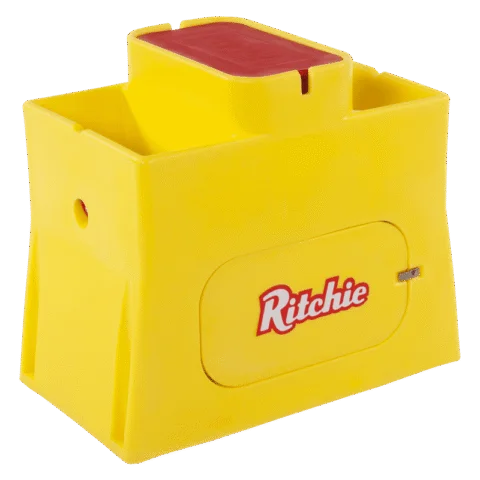

WaterMatic 300

Name: WaterMatic 300
SKU: 18050

SKU: #18050

The WaterMatic family combines the best features of Ritchie waters, with the easiest operation and simple maintenance. The WaterMatic 300 is ideal for fence line applications with its two trough design. The waterer is fully insulated and impact-resistant to your larger herds. The insulation keeps the water cool in the summer and provides added protection during the winter. The drop in cover is easy to lift for maintenance and cleaning. Trough slopes towards drain holes for easy cleaning and debris removal. Drain plugs can be moved to the valve chamber opening for short-term trough shut-off during cleaning when the pen is empty or during excessively cold nights. Low capacity and fast refill valve allow for low water waste and fresh water on demand. Optional heat package is required in freezing conditions.

Herd Capacity

Horses: 125
Beef: 125
Dairy: 60

Not sold online, locate a dealer or call 1-800-747-0222.

Features

No gaskets to crack, tear or leak
One piece rugged fountain body
Generous side access panel
Easy to clean and maintain
All surfaces slope to drains for easy clean out
Ideal for a fence line application
Optional Immersion Heater and Self Regulating heat cable.
10 year warranty

WaterMatic 300 Instruction Manual

Specifications & Support

*Package dimensions are listed for individual parts for shipping purposes

Part No.: 18050
Length: 36in/91.44cm
Width: 21.5in/54.61cm
Overall Height: 31in/78.74cm
Shipping Weight: 69lb/31.3kg
Drinking Height: 26in/66.04cm
Capacity: 8.2gal/31.04L
Herd Capacity: 125 horses, 125 beef, 60 dairy

WaterMatic 300 Parts Breakdown WaterMatic 300 Footprint

WaterMatic 300 Videos

How to remove the Immersion Heater in a Ritchie automatic waterer

Immersion heaters provide added protection to all plastic Ritchie waterers during the winter. Minimum maintenance is required to keep them functioning for seve…

How to clean a Ritchie WaterMatic automatic waterer

Cleaning your WaterMatic series waterer frequently is quick and easy following the steps shown in this video. With little water waste, you can ensure your anim…
