Need a heavy-duty waterer for a large herd? Sounds like a job for the WaterMaster 1400. At 14 feet (4.26 m) long and with a 110-gallon (416-L) capacity, it’s the biggest Ritchie in our history. But that doesn’t mean it’s hard to install. Two people can install the WaterMaster 1400 without heavy equipment.

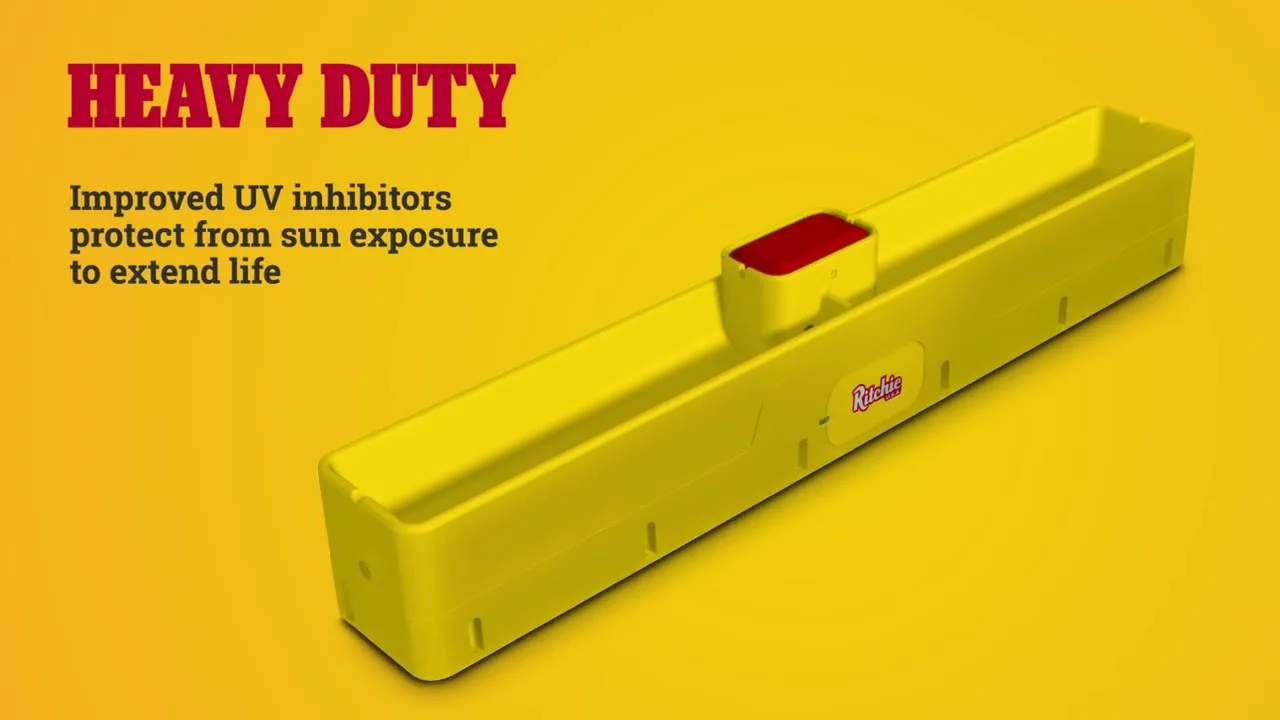

This waterer is designed to stand the test of time. The impact-resistant polyethylene construction makes it durable enough for large herds, while improved UV inhibitors help extend the waterer’s life. Meanwhile, the Ritchie water-seal design protects the water valve from cold air while eliminating gaskets that can freeze, crack or tear. Plus, the WaterMaster 1400 requires 75% less energy in the winter than concrete units, and they won’t pit or cause cleaning problems.
-
Built rugged for feedlot, pasture and dairy conditions.
-
Narrow trough makes it ideal for use in crossovers and alleyways of dairy barns.
-
Solid polyurethane foam insulation keeps water ice-free longer in the winter and cooler in the summer.
- Part No.
- 18930
- Length
- 168in/427cm
- Width
- 24in/61cm
- Height
- 29in/74cm
- Weight
- 285lbs/129kg
- Drinking Height
- 24 inches
- Herd Capacity
- 250 Dairy, 500 Beef
Ritchie WaterMaster 1400
1-foot thermal tube top
2-foot thermal tube extension
3-inch plug package
3/4-inch HP valve assembly
3/4-inch series float hardware package
3/4-inch valve rubber package
4-foot thermal tube top
Anchor bolts package
Green 3/4-inch valve series
Replace your existing valves in your larger green Ritchie automatic waterers.
Immersion heater
Red 3/4-inch valve series
Self-regulating heat cable
Access panel hardware package
Ritchie Waterers are so well insulated that we have been recognized by electric companies and government agencies for energy efficiency. Below is the estimated cost of electricity per unit, per year.
All costs are based on a rate of 18.05 cents per kilowatt-hour. Your cost may vary. Estimates based on U.S. dollars.
Estimated annual energy cost for WaterMaster 1400
| Oklahoma City, Oklahoma | St. Louis, Missouri | Conrad, Iowa | Sioux Falls, South Dakota | Fargo, North Dakota | Winnipeg, Manitoba |
|---|---|---|---|---|---|
| $69.50 | $88.96 | $143.64 | $155.68 | $165.87 | $179.78 |
